Cast Steel Valve

Shanxi Solid Industrial Co., Ltd. (SOLID) is a cast steel valve manufacturer and supplier in China. We supply API and DIN industrial valves for oil and gas, petrochemical, power generation, water treatment and general pipeline projects: gate valves, globe valves, ball valves, swing check valves, dual plate check valves and butterfly valves.

Cast steel valve specs

  • Valve types: gate, globe, ball, swing check, dual plate check, butterfly

  • Sizes: 1/2"-48" (API) and DN15-DN1000 (DIN), depending on valve type

  • Pressure classes: ASME Class 150 / 300 / 600 / 900 / 1500; Class 2500 for applicable custom designs; DIN PN16-PN64

  • Body materials: ASTM A216 WCB, A352 LCB, A217 WC6 / WC9, A351 CF8 / CF8M / CF3 / CF3M; WCC, LCC, C5, C12, duplex and nickel alloys on request

  • Design standards: API 600, API 6D, API 594, API 609, ASME B16.34, BS 1873, BS 1868, BS 5351, DIN 3202

  • Ends: flanged (RF / RTJ), butt weld, wafer, lug

  • Operation: handwheel, lever, gear, electric actuator, pneumatic actuator

  • Testing: API 598 for applicable API models; DIN 3230 for DIN check valves

  • Supply: wholesale, mixed-valve project orders, OEM manufacturing to customer drawings

SOLID serves distributors, EPC contractors and industrial equipment manufacturers who want to buy several valve types, materials and pressure classes from one supplier. Send us your valve list and we will quote it as a single order.

2 (2).png

Cast Steel Valve Product Range

Product Type

Size

Pressure Rating

Main Features

API Cast Steel Gate Valve

1/2"-48"

Class 150-1500

Bolted bonnet, OS&Y, rising stem, flanged or butt-weld ends

Cast Steel Globe Valve

1/2"-24"

Class 150-1500

Bolted bonnet, flow regulation, multiple trim options

Cast Steel Ball Valve

1/2"-24"

Class 150-1500

Floating or trunnion-mounted ball, two-piece or three-piece body

API Swing Check Valve

1/2"-40"

Class 150-1500

Bolted cover, swing disc, flanged or butt-weld ends

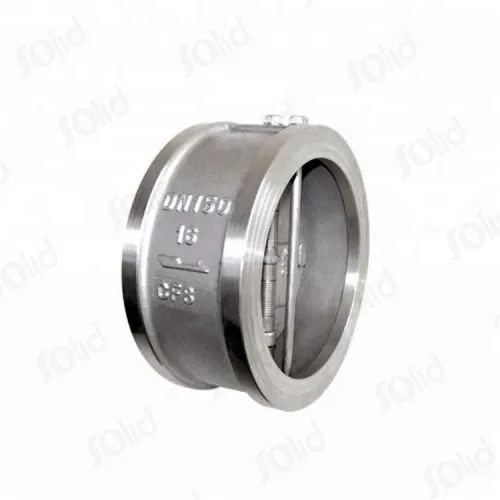

Dual Plate Check Valve

2"-32"

Class 150-1500

Wafer body, dual plate, spring-assisted closure

Butterfly Valve

2"-80"

Class 150-1500

Wafer, lug and flanged configurations

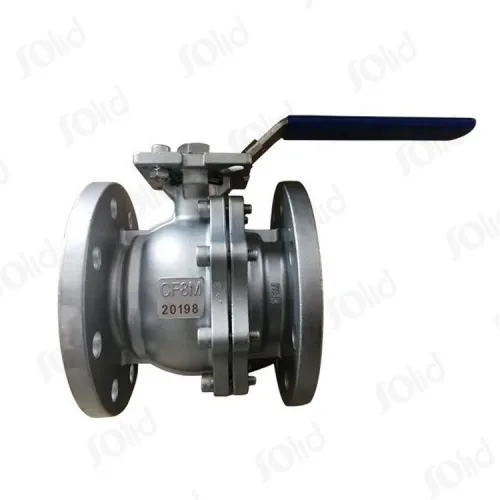

DIN Ball Valve

DN15-DN300

PN16 / 25 / 40 / 64

Floating ball, two-piece or three-piece construction

DIN Check Valve

DN15-DN1000

PN16 / 25 / 40 / 64

Non-return valve, multiple body materials

For projects that need both isolation and flow control, we combine API gate valves, API globe valves and ball valves in one order. Looking for corrosion-resistant fabricated or other stainless products? See our Stainless Steel Valve range.


What Is a Cast Steel Valve, and When Should You Choose One?

A cast steel valve has a body (and usually a bonnet) made by casting steel to shape, then machining the sealing surfaces, flange faces and stem area. Casting makes it practical to produce the larger bores and higher pressure classes used in refineries, pipelines and power plants. Typical selection logic:

  • Choose cast steel over cast iron when the line has higher pressure, higher temperature, shock loads or hazardous media; cast steel has far better strength and ductility.

  • Choose cast steel over forged steel for sizes of about 2" and above and for complex body shapes; forged steel valves (such as API 602 designs) are normally used for small bores.

  • Choose gate valves for on/off isolation, globe valves for throttling and flow regulation, ball valves for quick quarter-turn shutoff, and check valves to stop reverse flow.


Cast Steel Valve Technical Specifications

Standard products cover API and DIN piping systems. Non-standard dimensions, special alloys and high-pressure designs fall under custom manufacturing.

Specification

Standard Range

Valve Types

Gate, Globe, Ball, Swing Check, Dual Plate Check, Butterfly

API Gate Valve Size

1/2"-48"

API Globe Valve Size

1/2"-24"

API Ball Valve Size

1/2"-24"

API Swing Check Valve Size

1/2"-40"

API Dual Plate Check Valve Size

2"-32"

API Pressure Classes

Class 150 / 300 / 600 / 900 / 1500

DIN Ball Valve Size

DN15-DN300

DIN Check Valve Size

DN15-DN1000

DIN Pressure Ratings

PN16 / 25 / 40 / 64

Cast Carbon Steel

ASTM A216 WCB

Low-Temperature Steel

ASTM A352 LCB

Alloy Steel

ASTM A217 WC6 / WC9

Cast Stainless Steel

ASTM A351 CF8 / CF8M / CF3 / CF3M

End Connections

Flanged / Butt Weld

Operation

Handwheel / Lever / Gear

Valve Trim

13Cr, 304, 316

Bonnet / Cover

Bolted Bonnet / Bolted Cover

Packing

Flexible Graphite

Surface Protection

Standard finishes by product

Inspection

API 598 for applicable API models


Cast Steel Valve Materials and Grades

SOLID supplies cast carbon steel, low-temperature steel, alloy steel and cast stainless steel valves in commonly specified ASTM grades.

Material Grade

Type

Typical Temperature Range*

Typical Use

SOLID Supply

ASTM A216 WCB

Cast carbon steel

-29 to 425 °C

Oil, gas, water and general process piping

Gate, Globe, Ball, Swing Check, Dual Plate Check

ASTM A216 WCC

Cast carbon steel

-29 to 425 °C

Projects specifying WCC

Custom

ASTM A352 LCB

Low-temperature cast steel

-46 to 345 °C

Cold-climate and low-temperature pipelines

Gate, Globe, Ball, Swing Check

ASTM A352 LCC

Low-temperature cast steel

-46 to 345 °C

Low-temperature service requiring LCC

Custom

ASTM A217 WC6

Cr-Mo alloy steel

-29 to 593 °C

Steam, power and elevated-temperature piping

Gate, Globe, Ball, Swing Check

ASTM A217 WC9

Cr-Mo alloy steel

-29 to 593 °C

High-temperature process and power piping

Gate, Globe, Ball, Swing Check

ASTM A217 C5 / C12

Cast alloy steel

Per project

Special elevated-temperature service

Custom

ASTM A351 CF8

Cast stainless (304 type)

Down to cryogenic, per rating

Water treatment, process piping, mild corrosive media

Gate, Globe, Ball, Check

ASTM A351 CF8M

Cast stainless (316 type)

Down to cryogenic, per rating

Chemical processing, chloride-bearing media

Gate, Globe, Ball, Check

ASTM A351 CF3 / CF3M

Low-carbon cast stainless

Per rating

Projects specifying low-carbon castings

Applicable Gate, Globe, Ball, Check

Duplex / Nickel Alloy

Special cast alloy

Per project

Specialized corrosion-resistant service

Custom

How to Choose the Body Material

  • WCB: the default choice for non-corrosive oil, gas, water and steam at moderate temperature.

  • LCB / LCC: use when the minimum design temperature is below about -29 °C and impact toughness is required.

  • WC6 / WC9: use for high-temperature steam and power service where carbon steel loses strength.

  • CF8 / CF8M: use for corrosive or hygiene-sensitive media. CF8M (316 type) resists chlorides better than CF8 (304 type).

  • CF3 / CF3M: low-carbon versions that limit intergranular corrosion after welding.

WCB Carbon Steel Valves

Our ASTM A216 WCB gate, globe, ball and check valves cover oil, gas, water and process pipelines in Class 150, 300, 600, 900 and 1500, with flanged and butt-weld ends. For pipeline isolation, see our WCB API gate valves with bolted bonnet, OS&Y and rising-stem design.

LCB Low-Temperature Cast Steel Valves

ASTM A352 LCB gate, globe, ball and swing check valves are available for low-temperature industrial service. LCC is available as a custom material.

WC6 and WC9 Alloy Steel Valves

WC6 and WC9 gate, globe, ball and swing check valves serve elevated-temperature piping, with C5 and C12 available for custom projects. For steam and flow regulation, see our alloy steel globe valves with multiple pressure classes, trim materials and actuator options.

Cast Stainless Steel Valves (CF8, CF8M, CF3, CF3M)

Stainless gate, globe, ball and check valves are available within the applicable API range.


Connections, Trim and Actuation

Configuration

Standard Options

Custom Options

Gate Valve Connections

Flanged / Butt Weld

RF / RTJ, special weld ends

Globe Valve Connections

Flanged / Butt Weld

Special flange and weld ends

Ball Valve Connections

Flanged

Project-specific ends

Swing Check Connections

Flanged / Butt Weld

Special dimensions

Dual Plate Check Connections

Wafer

Project-specific flange compatibility

Butterfly Valve Connections

Wafer / Lug / Flanged

Special flanges

Gate / Globe Operation

Handwheel / Gear

Electric / Pneumatic Actuators

Ball Valve Operation

Lever / Worm Gear

Electric / Pneumatic Actuators

Check Valve Operation

Automatic

Special internal configurations

Component

Available Materials / Configurations

Valve Stem

13Cr, 304, 316, applicable alloys

Seat / Seating Surface

Carbon steel, stainless steel, Stellite hardfacing

Gate / Disc

Carbon steel, alloy steel, stainless steel

Packing

Flexible graphite, special packing

Gaskets

Standard industrial gaskets, custom materials

Dual Plate Check Springs

Inconel / 17-7PH

Dual Plate Check Shafts

F6a, 304, 316, 304L, 316L, 17-7PH

Our API 594 dual plate check valves use Inconel or 17-7PH springs. For flanged or butt-weld non-return service we also supply cast steel swing check valves in WCB, LCB, WC6, WC9 and stainless steel.


API and DIN Standards

Valve Type

Design Standards

Connection / Dimension Standards

Inspection

Gate Valve

API 600 / ASME B16.34; API 6D where applicable

ASME B16.10 / B16.5 / B16.25

API 598

Globe Valve

BS 1873 / ASME B16.34; API 623 where applicable

ASME B16.10 / B16.5 / B16.25

API 598

Ball Valve

API 6D / ASME B16.34 / BS 5351

ASME B16.10 / B16.5

API 6D / API 598

Swing Check Valve

BS 1868 / ASME B16.34; API 6D where applicable

ASME B16.10 / B16.5 / B16.25

API 598

Dual Plate Check Valve

API 594 / ASME B16.34

API 594 / ASME B16.5 / B16.47

API 598

Butterfly Valve

API 609 / ASME B16.34

API 609 / ISO 5752

API 598 / ISO 5208

DIN Check Valve

Applicable DIN requirements

DIN 3202

DIN 3230

Our API 600 gate valves are offered with flanged and butt-weld ends; our API 594 check valves use wafer construction in multiple classes. For DIN projects we supply DIN ball valves and DIN check valves in PN16, PN25, PN40 and PN64.


Custom and OEM Cast Steel Valve Manufacturing

SOLID builds custom valves for equipment manufacturers, distributors, EPC contractors and project buyers, including manufacturing to customer drawings and technical specifications.

Custom Item

Available Options

Size

Non-standard dimensions and project configurations

Pressure Class

Class 2500 for applicable high-pressure designs

Carbon / Low-Temp Steel

WCC, LCC and project-specified grades

Alloy Steel

WC1, WC6, WC9, C5, C12 and other applicable grades

Stainless / Special Alloys

CF8, CF8M, CF3, CF3M, duplex, nickel alloys

Trim

Stainless trim, hardfaced seats, special disc and stem materials

Connections

RF, RTJ, butt weld, special flange dimensions

Operation

Electric and pneumatic actuators

Construction

Pressure seal bonnet, special disc and sealing designs

Coating

Abrasive blasting, epoxy coating, protective primers and finish coats, specified colors

Marking

OEM logo, product identification, project tag numbers

Inspection / Documents

Additional NDE, third-party inspection, specified documentation


Cast Steel Valves by Industry

Industry / Application

Valve Products

Common Materials

Oil & Gas Pipelines

Gate, Ball, Swing Check

WCB, LCB, applicable alloy steel

Petrochemical Processing

Gate, Globe, Ball, Check

WCB, WC6, WC9, CF8, CF8M

Power Generation

Gate, Globe, Swing Check

WCB, WC6, WC9

Industrial Steam Systems

Gate, Globe, Check

WCB, WC6, WC9

Water Treatment

Gate, Ball, Check, Butterfly

WCB, CF8, CF8M

Chemical Processing

Globe, Ball, Check

CF8, CF8M, special alloys

General Industrial Piping

Gate, Globe, Ball, Check

WCB, stainless grades

For non-return service, API swing check valves suit flanged or butt-weld lines, while dual plate check valves suit compact wafer installations.


Cast Steel Valve FAQ

What types of cast steel valves can I buy from SOLID?

We supply cast steel gate, globe, ball, swing check, dual plate check and butterfly valves in API and DIN series, with different sizes, pressure classes, body materials and end connections. Orders may combine several valve types.

What is the difference between WCB and LCB cast steel valves?

WCB (ASTM A216) is the general-purpose carbon steel grade for ambient and moderate-temperature service. LCB (ASTM A352) is a low-temperature carbon steel with required impact toughness, used when the design temperature falls below about -29 °C.

Do you manufacture WCB valves in Class 150, 300 and 600?

Yes. WCB gate, globe, ball and check valves are available in Class 150, 300 and 600, with Class 900 and 1500 across our published API ranges, in flanged and other applicable connections.

Can you supply Class 2500 cast steel valves?

Yes. Class 2500 is part of our custom range for suitable high-pressure designs, including high-pressure globe valves and applicable gate, ball and check valves.

Can I order WCB, LCB, WC6, WC9 and stainless steel valves in one order?

Yes. We combine different material grades in one industrial order, including WCB, LCB, WC6/WC9 and CF8/CF8M, with additional materials for OEM and custom projects.

Which standard applies to a cast steel gate valve: API 600 or API 6D?

API 600 covers bolted-bonnet steel gate valves for general refinery and industrial service. API 6D covers pipeline valves, including slab and through-conduit gate designs. Tell us the project specification and we will quote the correct design.

Do you supply electric or pneumatic actuators?

Yes, for suitable gate, globe, ball and butterfly valves. Handwheel, lever and gear operation are also available.

Request a Quote from a Cast Steel Valve Manufacturer

SOLID supplies API and DIN cast steel valves to distributors, EPC contractors, equipment manufacturers and pipeline projects worldwide: WCB gate valves, LCB low-temperature valves, WC6/WC9 alloy valves, ball, globe and check valves, in standard Class 150-1500 and customized high-pressure options.

Send your valve list or specification (see the RFQ checklist above) and our sales team will prepare a quotation covering valve types, materials, pressure classes, quantities and configurations.

Contact SOLID for Cast Steel Valve Pricing and OEM Orders


  • API Ball Valve

    Material: ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M, ASTM A352 LCB, ASTM A217 WC6 and ASTM A217 WC9

  • API butterfly valve

    API butterfly valve is a versatile valve that is used to control the flow of liquids and gases in various industrial applications. Designed to meet the strict specifications of the American Petroleum Institute (API), this valve is engineered to offer reliable, high-performance solutions for industrial purposes.

  • API Gate Valve

    Design and Manufacture: Cast steel gate vlave to API 600(ISO 10434) or API 6D, cast stainless steel gate valve to API 603 or API 600; Forged steel gate valve to API 602.

  • API Globe Valve

    Cast Steel Globe Valves are valves with flanged or butt welding end connection designed with BS 1873 or API 627 standards and widely used in oil, gas, and petrochmeical industry.

  • API Swing Check Valve

    The prime functin of a check valve is to protect mechanical equipment in a piping system by preventing reversal of flow by the fluid which means the check valve is an automatic valve with forward flow and close againgst reverse flow. The closure member of swing check valve swings about a hinge...

  • API wafer dual plate check valve

    Wafer Body, Dual Plate, Cast Steel, Class150/300/600/900/1500

  • DIN Ball Valve

    Size: DN15-DN300

  • DIN check valve

    Size: DN15-DN1000

Ductile iron valves can be customized according to customer needs.

Customized ductile iron valves can be designed and manufactured according to specific dimensions, shapes, materials, and process requirements.


Customers can provide their own design drawings or requirement specifications, or communicate with suppliers to customize ductile iron valves that meet specific requirements. Customized ductile iron valves can meet the special needs of different engineering projects, improve the adaptability and reliability of the project.

CONTACT US NOW

Get In Touch

Please leave your request for any product you wish. We will be happy to search it for you in our databases or offer its custom synthesis.
