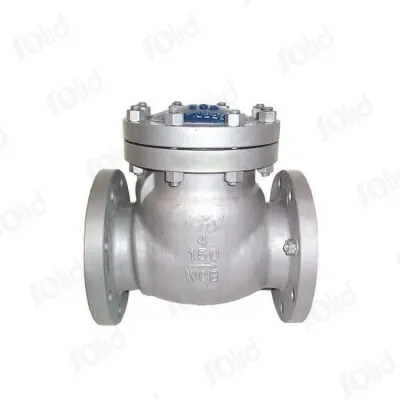

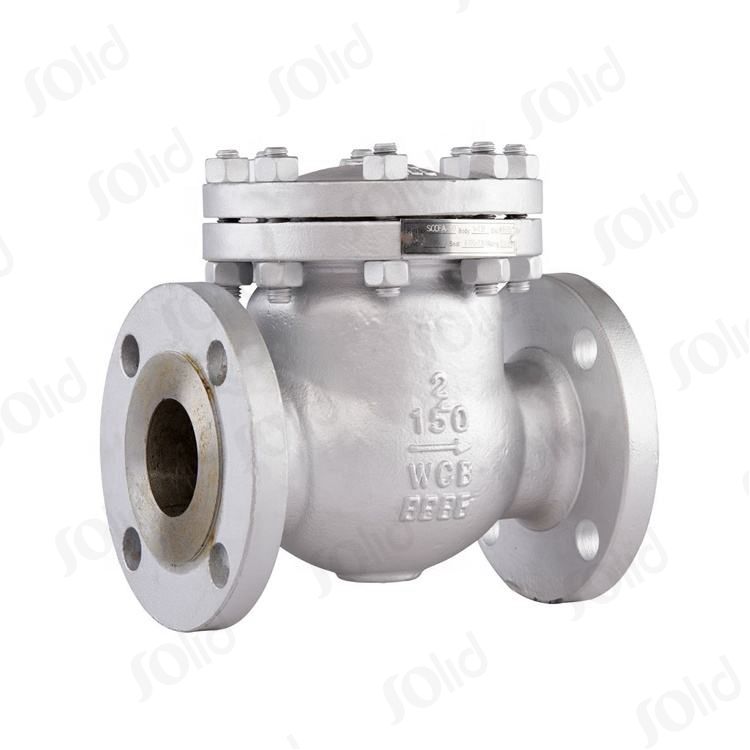

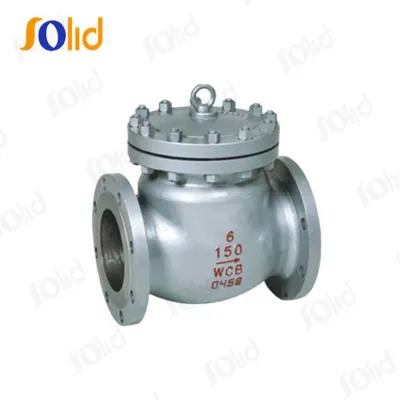

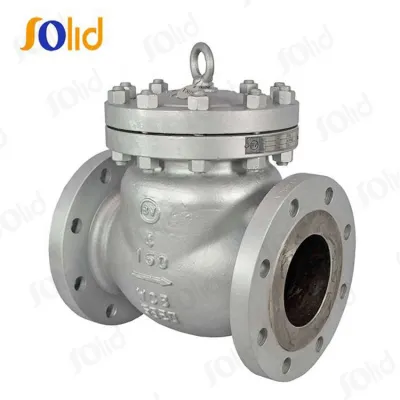

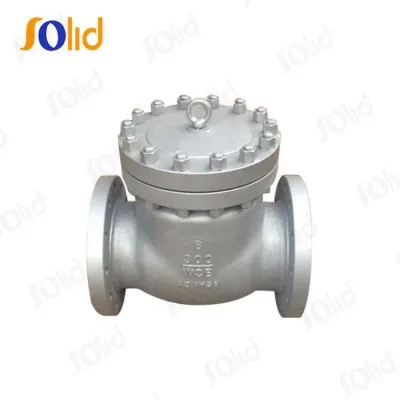

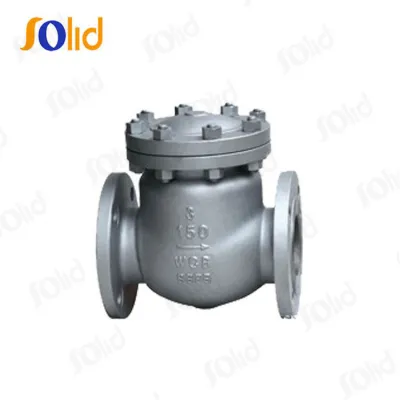

API Swing Check Valve

The prime functin of a check valve is to protect mechanical equipment in a piping system by preventing reversal of flow by the fluid which means the check valve is an automatic valve with forward flow and close againgst reverse flow. The closure member of swing check valve swings about a hinge...

The prime functin of a check valve is to protect mechanical equipment in a piping system by preventing reversal of flow by the fluid which means the check valve is an automatic valve with forward flow and close againgst reverse flow. The closure member of swing check valve swings about a hinge, which is which is mounted outside the seat.


Material Specification:


    Body & Cover: WCB, LCB, WC1, WC6, WC9, C5, C12, CF3, CF3M, CF8, CF8M, Aluminium Bronze.


    Seat Ring: A105, LF2, F304(L), F316(L), F51


    Hinge & Disc: WCB, LCB, WC1, WC6, WC9, C5, C12, CF3, CF3M, CF8, CF8M, Aluminium Bronze


    Hinge Pin: F6, F304(L), F316(L), Aluminium Bronze


    Bolts & Nuts: B7/2H, B8M/8M


Standards:


    API 6D, BS1868, ASME B16.34, ASME B16.5, ASME B16.25, ASME B16.10, MSS SP25


API Swing Check Valve

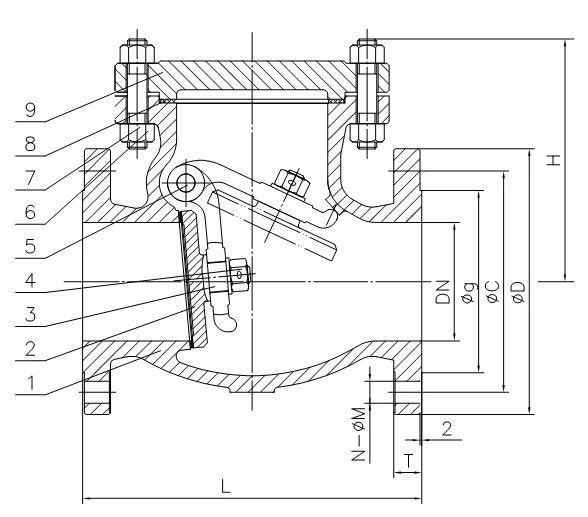

Product Dimensions:


NumberNameMaterial
1BodyWCB welding 13Cr
2DiscWCB welding 13Cr
3HingeWCB
4Nut304 SS
5Hinge Pin304 SS
6Nut304 SS
7Stud304 SS
8Gasket304 SS + Graphite
9BonnetWCB


Material: ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M, ASTM A352 LCB, ASTM A217 WC6 and ASTM A217 WC9

Bolted cover, swing type disc

Size: 1/2' -40'

Pressure: 150LB, 300LB, 600LB, 900LB and 1500LB

Design and manufacture: ANSI B16.34

Face to face dimension: ANSI B16.10

Flange end: ANSI B16.5

Butt welded: ANSI B16.25

Test and inspection: API 598



Ductile iron valves can be customized according to customer needs.

Customized ductile iron valves can be designed and manufactured according to specific dimensions, shapes, materials, and process requirements.


Customers can provide their own design drawings or requirement specifications, or communicate with suppliers to customize ductile iron valves that meet specific requirements. Customized ductile iron valves can meet the special needs of different engineering projects, improve the adaptability and reliability of the project.
