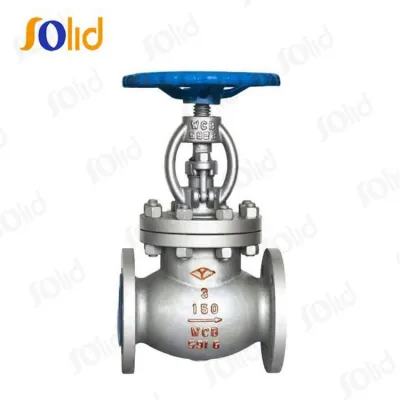

  • API 602 Globe Valve

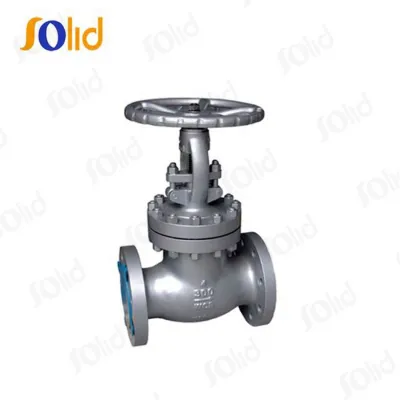

  • API 602 Globe Valve

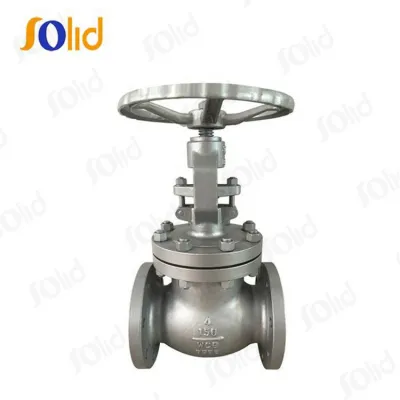

  • API 602 Globe Valve

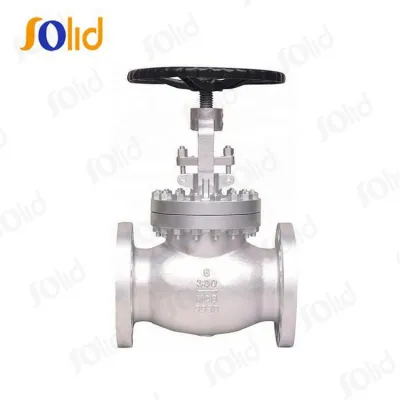

  • API 602 Globe Valve

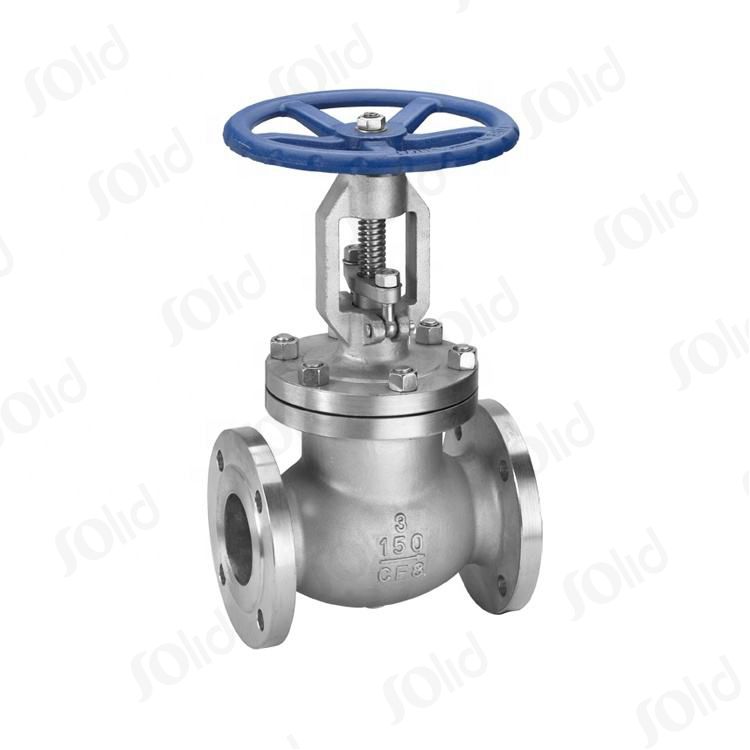

  • API 602 Globe Valve

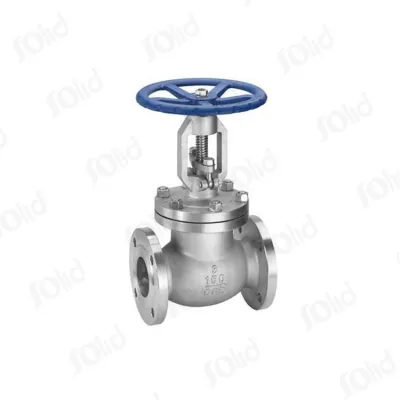

  • API 602 Globe Valve

API Globe Valve

Our API Globe Valves are engineered and manufactured in strict compliance with international standards including API 602, API 627, BS 1873, and ASME B16.34. Designed for precise flow control and reliable shut-off, these industrial globe valves are widely used in oil & gas, petrochemical, power generation, and high-pressure pipeline systems.

API Globe Valve Manufacturer

SOLID manufactures API globe valves for flow regulation and shut-off in oil & gas, refinery, petrochemical, power generation, steam, industrial utility and high-pressure process piping systems. Our cast steel globe valves are available with carbon steel, low-temperature steel, stainless steel and alloy steel bodies, with multiple ASME pressure classes, trim materials, end connections and operation options for different process conditions.

Standard cast steel globe valve configurations cover 1/2"–24" and ASME Class 150, 300, 600, 900 and 1500. Higher-pressure configurations up to Class 2500 can be reviewed according to valve size, material, temperature, connection and project specification.


API Globe Valve Technical Specifications

ParameterAvailable Specification
Product TypeCast Steel Globe Valve / Forged Steel Globe Valve
Standard Cast Steel Size Range1/2"–24"
Standard Pressure ClassesASME Class 150 / 300 / 600 / 900 / 1500
High-Pressure Custom OptionUp to Class 2500, subject to size, material, temperature and project specification
Body MaterialsASTM A216 WCB / ASTM A352 LCB / ASTM A217 WC6 / ASTM A217 WC9 / ASTM A351 CF8 / CF8M / CF3 / CF3M
ConstructionBolted Bonnet / OS&Y / Rising Stem
Design & ManufactureBS 1873 / ASME B16.34 for cast steel globe valve configurations; API 602 for applicable compact forged steel configurations
Face-to-FaceASME B16.10
Flanged EndsASME B16.5
Butt-Weld EndsASME B16.25
Inspection & TestingAPI 598
End ConnectionsFlanged / Butt Weld; socket-weld and threaded ends available for applicable forged configurations
OperationHandwheel / Gear / Electric Actuator / Pneumatic Actuator according to valve size and project requirements
PackingFlexible Graphite and other application-specific options
Typical MediaWater / Oil / Natural Gas / Steam / Compatible Process Fluids
OEM / CustomizationAvailable according to drawings, datasheets and project specifications


API Globe Valve Standards

Different API, ASME and BS standards control different aspects of a globe valve. The required standards should therefore be specified by function rather than simply listing multiple standard numbers on the purchase order.

Requirement

Standard

Cast Steel Globe Valve DesignBS 1873
Pressure-Temperature / General Valve RequirementsASME B16.34
Compact Forged Steel ConfigurationAPI 602
Face-to-Face DimensionsASME B16.10
Flanged EndsASME B16.5
Butt-Weld EndsASME B16.25
Inspection & Pressure TestingAPI 598


How to Select the Right Pressure Class

Do not select an API globe valve by pressure class alone. The allowable pressure of a valve changes with body material and operating temperature. Use the Class designation together with the complete process conditions.

Pressure Class

Selection Direction

Class 150General industrial and process services within the applicable material pressure-temperature rating
Class 300Higher-pressure industrial and process piping
Class 600High-pressure process, refinery, steam and industrial service
Class 900Demanding high-pressure and high-temperature service
Class 1500Very high-pressure industrial and process piping
Class 2500Project-specific extreme-pressure configuration

API Globe Valve Body Material Selection

Body material should be selected according to process medium, design temperature, pressure and corrosion conditions rather than price alone.

MaterialMaterial Type

Typical Selection Direction

ASTM A216 WCBCast Carbon SteelGeneral oil, gas, water, steam and industrial process service
ASTM A352 LCBLow-Temperature Carbon SteelLow-temperature process applications
ASTM A217 WC6Chrome-Moly Alloy SteelElevated-temperature steam and process service
ASTM A217 WC9Chrome-Moly Alloy SteelHigher-temperature and demanding pressure-temperature service
ASTM A351 CF8Cast Stainless SteelCorrosion-resistant industrial service
ASTM A351 CF8MCast Stainless SteelApplications requiring improved corrosion resistance compared with standard CF8
ASTM A351 CF3Low-Carbon Cast Stainless SteelProjects specifying low-carbon stainless steel
ASTM A351 CF3MLow-Carbon Cast Stainless SteelCorrosive applications requiring low-carbon molybdenum-bearing stainless steel

Trim, Seat, Stem and Packing Selection

Body material alone does not define the performance of an industrial globe valve. The disc, seat, stem, packing and gasket should be selected according to pressure, temperature, process medium, throttling duty and shut-off requirements.

Component

Available Selection Direction

Seat / Seat Ring13Cr / Stainless Steel / Hard-Faced Options according to service
DiscMatched to body and trim specification; hard-facing available for demanding service
Stem13Cr / Stainless Steel / Alloy options according to valve specification
PackingFlexible Graphite / Application-Specific Packing
GasketGraphite and project-specific gasket configurations
BoltingSelected according to body material and service condition

When requesting a quotation, provide the required trim number or specify the process medium, pressure, temperature and corrosion conditions so the appropriate trim can be reviewed.

Flanged vs Butt-Weld API Globe Valve

Selection FactorFlanged Globe ValveButt-Weld Globe Valve
Connection StandardASME B16.5ASME B16.25
InstallationBolted between mating pipeline flangesWelded directly into the pipeline
Removal for MaintenanceEasier to remove from the pipelineRequires cutting/welding work for complete valve removal
Potential External JointIncludes flange and gasket jointsEliminates the detachable flange joint
Typical Selection DirectionApplications where maintenance access and valve replacement are importantPermanent process piping, including demanding pressure/temperature services where welded connections are specified
RFQ InformationSize / Class / Flange Facing / StandardSize / Class / Pipe Schedule / End Preparation

Cast Steel vs Forged Steel Globe Valve

SOLID supplies both cast and applicable forged steel valve configurations. They should not be treated as the same product simply because both may be described as API globe valves.

FactorCast Steel Globe ValveForged Steel Globe Valve
Manufacturing MethodCastingForging
Primary Standard DirectionBS 1873 / ASME B16.34API 602 / ASME B16.34
Size DirectionSuitable for medium and larger industrial piping sizesCommonly selected for compact small-bore piping
Common End ConnectionsFlanged / Butt WeldSocket Weld / Threaded / Butt Weld / Flanged depending on design
Typical Selection ReasonIndustrial process piping requiring larger sizes and multiple material/Class combinationsCompact small-bore, high-pressure process and utility piping
Typical ApplicationsRefinery / Petrochemical / Power / Process PipingDrain / Vent / Bypass / Steam / High-Pressure Small-Bore Lines

API Globe Valve Selection by Application

ApplicationMain Operating Concern

Selection Direction

Oil & GasPressure, hydrocarbon compatibility and reliable shut-offWCB / Stainless / Alloy Steel according to service conditions
RefineryHigh temperature, pressure, throttling and leakage controlSelect body, trim, packing and pressure class according to process datasheet
PetrochemicalChemical compatibility and corrosionStainless or appropriate alloy configuration where required
SteamHigh temperature and pressureWCB, WC6 or WC9 according to design temperature and pressure
Power GenerationHigh-pressure and high-temperature process conditionsCarbon or alloy steel high-Class configuration according to service
Industrial Water & UtilityReliable regulation and isolation with practical maintenanceWCB or stainless configuration according to water chemistry and project requirements

Globe Valve vs Gate Valve: Which Should You Choose?

Selection FactorAPI Globe ValveAPI Gate Valve
Primary FunctionFlow regulation plus shut-offOn/off isolation
ThrottlingBetter suited to throttling and flow regulationNot normally recommended for continuous throttling
Pressure DropGenerally higher due to internal flow pathLower when fully open
OperationRequires greater operating force for comparable size/ClassDesigned primarily for full-open/full-close service
Typical SelectionSteam, process regulation, utility and applications requiring controlled flowMain pipeline isolation


Custom API Globe Valve Options

Customization ItemAvailable Direction
SizeStandard and project-specific sizes according to valve design
Pressure ClassClass 150 / 300 / 600 / 900 / 1500; higher-pressure configurations up to Class 2500 can be reviewed
Body MaterialWCB / LCB / WC6 / WC9 / CF8 / CF8M / CF3 / CF3M
TrimSeat, disc and stem materials selected according to service conditions
ConnectionFlanged / Butt Weld; additional end options for applicable forged designs
OperationHandwheel / Gear / Electric / Pneumatic
Packing & GasketSelected according to pressure, temperature, medium and project requirements
Marking & TaggingProject-specific valve identification and tagging available
CoatingSelected according to project/environmental requirements

Drawings

Dimensional and project drawings can be supplied according to order requirements

Additional NDE

Can be reviewed when specified by the project or purchase specification

MOQ, Project Orders and Supply Information

Purchasing ItemSOLID Supply Information
MOQ

No fixed MOQ. 1 Pcs

Project OrdersSupported for industrial, infrastructure and project tender requirements
OEM / Custom ManufacturingAvailable according to customer drawings, datasheets and specifications
DrawingsAvailable according to project/order requirements
Material DocumentationMaterial certificates can be supplied according to agreed order requirements
Pressure Test ReportAvailable according to agreed inspection/documentation scope
Third-Party InspectionCan be arranged when specified
Custom Marking / TaggingAvailable according to project requirements
Export PackingConfigured according to valve size, weight, transportation method and project requirements
Lead TimeConfirmed according to valve size, Class, material, quantity, actuation and inspection/documentation requirements


API Globe Valve FAQ

What sizes and pressure classes of API globe valves does SOLID manufacture?

SOLID's standard cast steel globe valve range covers 1/2"–24" in ASME Classes 150, 300, 600, 900 and 1500. Higher-pressure configurations up to Class 2500 can be reviewed according to valve size, material, temperature and project specification.

What is the difference between API 602 and BS 1873 globe valves?

API 602 is used for applicable compact steel gate, globe and check valve configurations and is commonly associated with small-bore forged steel construction. BS 1873 is used for cast steel globe and globe stop-check valve designs. They should not be treated as the same valve specification.

What is the difference between cast steel and forged steel globe valves?

Cast steel globe valves are well suited to medium and larger industrial piping sizes and commonly use flanged or butt-weld connections. Forged steel globe valves are commonly selected for compact small-bore and high-pressure process piping, with socket-weld, threaded, butt-weld or flanged connections depending on the design.

How do I choose between Class 150, 300, 600, 900 and 1500?

Provide the design pressure, design temperature, body material and process medium. ASME Class is a pressure-temperature rating system, so the correct Class cannot be selected from pressure alone.

When should I choose WCB, WC6 or WC9?

WCB is widely used for general carbon-steel process service. WC6 and WC9 are alloy-steel materials used where elevated temperature and demanding pressure-temperature conditions require them. Final material selection should follow the process design conditions.

When should I choose CF8M instead of WCB?

CF8M can be considered when the process requires greater corrosion resistance than carbon steel. Fluid chemistry, chlorides, temperature and project material specifications should be reviewed before selection.

Can API globe valves be used for throttling?

Yes. Globe valves are commonly selected where flow regulation is required because their disc-and-seat flow path provides better throttling capability than a gate valve. Severe throttling applications should also consider velocity, cavitation, erosion, differential pressure and trim design.
