  • U Type Butterfly Valve

  • U Type Butterfly Valve

  • EN593 U Type Flange Butterfly Valve

  • U type flange butterfly valve (TH-BTV-UTF)

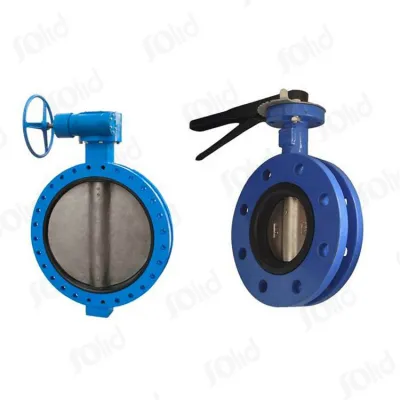

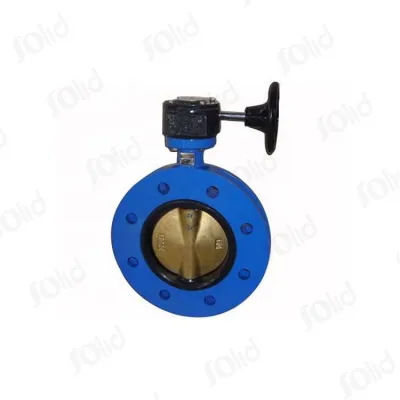

U Type Butterfly Valve

Size: DN50–DN1200

Pressure: PN10 / PN16 / PN25

Body: Ductile Iron, Carbon Steel, Stainless Steel, Aluminum Bronze

Disc: Ductile Iron, SS304, SS316, Aluminum Bronze

Seat: EPDM, NBR, PTFE, Viton, Hypalon

Stem: SS410, SS416, SS304, SS316

Connection: U-type flanged; DIN, BS, ANSI, JIS options

Operation: Manual, worm gear, electric, pneumatic

Standards: EN 593, API 609, MSS SP-67; API 598 testing

Coating: Internal/external FBE, min. 250 μm

Applications: Water supply, wastewater, pumping stations, industrial pipelines.


China U Type Butterfly Valve Supplier

SOLID manufactures U Type Flanged Butterfly Valves for water transmission pipelines, pumping stations, wastewater treatment systems, and industrial pipe networks. The U-section body provides a compact flanged arrangement for installation between matching pipeline flanges.

Compared with a conventional wafer butterfly valve, a U-type design incorporates a wider body section with flange connection features. This configuration is useful when the piping specification requires a U-section valve or when the dimensions must match an existing flanged installation.

SOLID's U Type Butterfly Valve range covers DN50–DN1200 with PN10, PN16, and PN25 pressure options. Available materials include ductile iron bodies, ductile iron or stainless steel discs, and several elastomeric seat materials.

As part of our ductile iron butterfly valve range, the U-type model can be specified with manual, worm gear, electric, or pneumatic operation.


Technical Specifications

ParameterSOLID Published Specifications
Product NameU Type Flanged Butterfly Valve
Alternative NameU Section Butterfly Valve
Nominal DiameterDN50–DN1200
Pressure RatingPN10 / PN16 / PN25
Shell Test Pressure15 / 24 / 37.5 bar
Seat Test Pressure11 / 17.6 / 27.5 bar
Body MaterialsDuctile Iron, Cast Iron, Carbon Steel, Stainless Steel, Aluminum Bronze
Disc MaterialsDuctile Iron, SS304, SS316, CF8M, WCB, Aluminum Bronze
Stem MaterialsCarbon Steel, SS410, SS416, SS420, SS304, SS316
Seat MaterialsEPDM, NBR, PTFE, Viton, Hypalon
BushingPTFE / Lubricating Material
OperationManual, Worm Gear, Pneumatic, Electric
Design StandardsEN 593 / API 609 / MSS SP-67
Face-to-Face ReferenceISO 5752 Series 20 / Applicable Product Standard
Flange OptionsDIN 2501, BS 4504, ANSI B16.1, JIS and Other Published Flange Options
Inspection and TestingAPI 598
Surface ProtectionInternal and External Fusion-Bonded Epoxy Coating, Minimum 250 μm


Material List

No.PartAvailable Materials
1BodyDuctile Iron / Cast Iron / Carbon Steel / Stainless Steel / Al-Bronze
2DiscDuctile Iron / Stainless Steel 304 / Stainless Steel 316 / CF8M / WCB / Al-Bronze
3StemCarbon Steel / SS410 / SS416 / SS420 / SS304 / SS316
4SeatEPDM / NBR / PTFE / VITON / Hypalon
5BushingPTFE / Lubricating Material
6O-RingEPDM / NBR / PTFE / Hypalon
7PinSS304 / SS316 / SS416


U-Type Butterfly Valve Selection for Water and Industrial Pipelines

For a U Type Flanged Butterfly Valve, the correct material combination depends on the actual medium and operating conditions.

Body, disc, stem, and seat materials should be considered together.

Water Transmission and Pumping Stations

For water transmission pipelines, ductile iron is a published body material option.

An EPDM-seated configuration may be considered for suitable water service, while the disc and shaft materials should be selected according to the water chemistry and project requirements.

For large-diameter pumping station valves, the specification should also address operating torque, actuation method, pipeline pressure, and installation dimensions.

If the valve is intended for drinking water, the project may require specific material approvals or potable-water certifications. These must be confirmed for the actual product configuration.

Wastewater Treatment Systems

In wastewater applications, suspended solids and the chemical composition of the medium can influence valve selection.

The seat and disc may be exposed to abrasive particles or chemical substances during operation.

For wastewater containing significant solids or fibrous material, the operating conditions should be provided for review.

Industrial Water and Utility Systems

Industrial cooling water and utility pipelines may require valves for routine isolation or occasional flow adjustment.

Where frequent throttling is required, the valve's flow characteristics and operating conditions should be considered rather than selecting the U-type body solely for its connection arrangement.


How to Select a U Type Butterfly Valve

1. Confirm DN and Pressure Rating

Start with the nominal pipeline diameter and design pressure.

DN alone is not sufficient. The same U Type Butterfly Valve family may be supplied in different pressure configurations, and the available pressure rating can depend on the specific size and construction.

For replacement projects, provide the existing valve nameplate or drawing where possible. This helps confirm not only DN and PN but also face-to-face dimensions and pipeline connection requirements.

2. Match the Pipeline Flange Standard

The valve must match the mating pipeline flanges.

Solid's currently published flange drilling options include DIN 2501, BS 4504 and ANSI B16.1. If your project specification uses another flange standard, provide the exact standard, pressure class and drilling requirement for technical confirmation.

For replacement valves, do not assume that two valves with the same DN and PN have identical flange or face-to-face dimensions.


Select the Seat Material by Medium and Temperature

The seat is one of the most important specification items in a resilient-seated butterfly valve because it directly contacts the medium and forms the shut-off seal.

Solid's published U Type Butterfly Valve seat options include EPDM, NBR, PTFE and Viton.

Seat OptionTypical Selection ConsiderationWhat to Confirm Before Ordering
EPDMCommonly considered for water and wastewater serviceWater type, temperature and any potable-water approval requirement
NBRCommonly considered where oil resistance is requiredExact oil or fluid composition and operating temperature
PTFEConsidered where chemical resistance is an important requirementChemical concentration, temperature and actual seat construction
VitonConsidered for selected oils, chemicals or elevated-temperature serviceExact fluid and continuous operating temperature


Choose the Disc and Stem Materials

Material selection should follow the operating medium rather than being based only on price.

Ductile Iron Disc

A ductile iron disc can be considered for general water and wastewater systems where the coating and project specification provide the required corrosion protection.

Stainless Steel Disc

SS304 or SS316 may be considered where greater corrosion resistance is required. The correct grade depends on the actual water chemistry, chemical exposure and project specification.

Aluminum Bronze Disc

Aluminum bronze is another published disc option and may be considered for applications where the project requires this material. For seawater service, the complete wetted-material combination should be reviewed rather than selecting the disc material alone.

Stem options published for the U Type Butterfly Valve include SS410, SS416, SS420, SS304 and SS316.

When corrosion resistance is a project requirement, specify both the disc and stem materials instead of writing only “stainless steel internals.”


Large-Diameter U Type Butterfly Valve Operation

The operating method becomes increasingly important as valve diameter and differential pressure increase.

A butterfly valve requires torque to rotate the disc against the resistance created by the sealing arrangement and the process fluid.

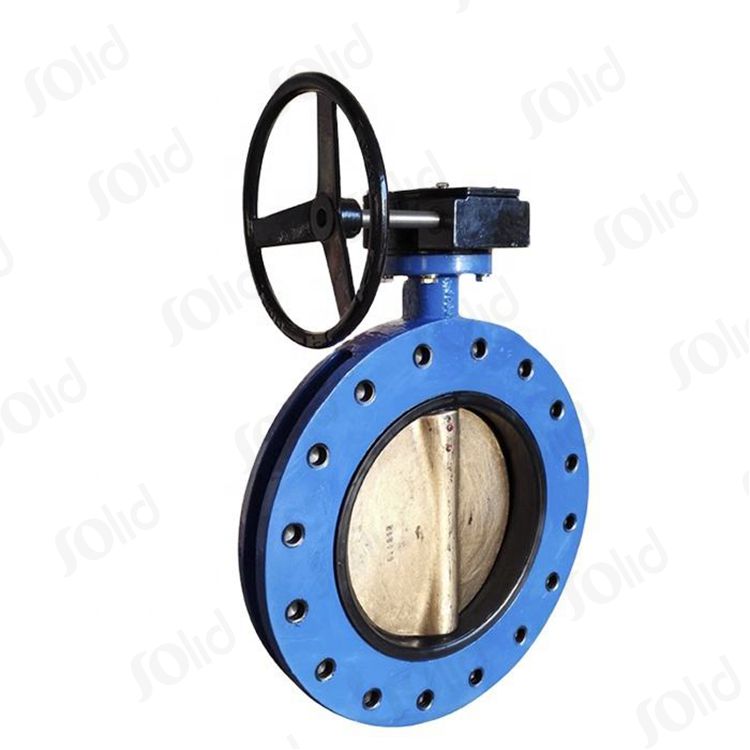

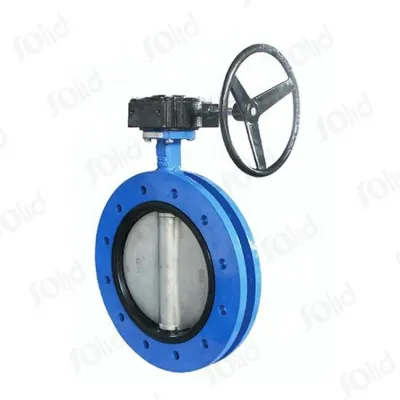

Worm Gear Operation

Worm gear operation is commonly considered for larger valves where direct lever operation may require excessive effort.

The gearbox should be matched to the selected valve's operating torque.

For pumping stations and water transmission pipelines, buyers should also consider the accessibility of the handwheel and the required operating frequency.

Electric Actuation

An electric actuator may be selected when a butterfly valve needs to operate from a remote control system.

For an electrically operated U-type butterfly valve, the project specification should identify the supply voltage, required opening and closing functions, control interface, and environmental conditions.

Pneumatic Actuation

Pneumatic operation may be considered when compressed air is available and remote or repeated operation is required.

The actuator selection should account for the available air pressure, required operating torque, control arrangement, and any specified fail position.


U Type vs Wafer, Lug and Double Flange Butterfly Valves

Solid supplies several butterfly valve body configurations. They should not be treated as interchangeable solely because the pressure and nominal diameter are the same.

TypeMain Selection IssueConsider It When
U Type / U SectionFlanged alignment, compact construction and project-specific dimensionsThe specification calls for a U-section body or this configuration matches the existing pipeline

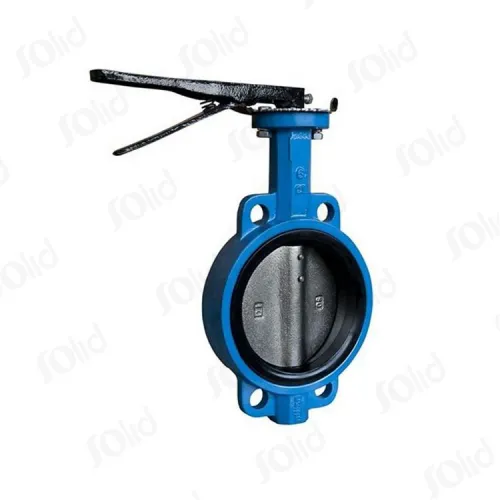

Wafer TypeCompact valve installed between mating flangesMinimum body length and weight are important and wafer installation is permitted

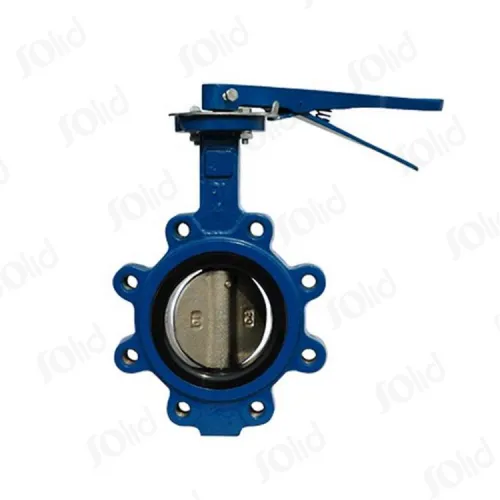

Lug TypeThreaded lug body and different pipeline isolation arrangementThe piping specification specifically calls for a lug-style valve

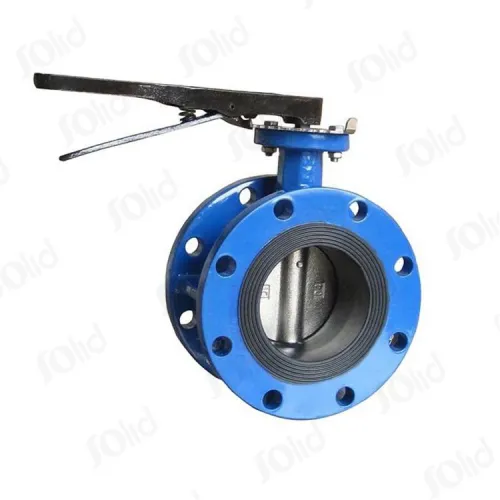

Double Flange Butterfly ValveFull flanged valve body; concentric or eccentric configurations are available in the Solid rangeStructural support, large pipelines or a specified double-flanged valve design is required


Butterfly Valve or Ductile Iron Sluice Valve?

In municipal water networks, a Ductile Iron Gate Valve is another common option for pipeline isolation.

The same product category is frequently described as a Ductile Iron Sluice Valve in waterworks specifications.

Unlike a butterfly valve, which uses a rotating disc, a gate valve opens and closes by moving a wedge or gate through the flow passage.

A fully open gate valve generally creates less flow resistance than a butterfly valve with a disc remaining in the flow path.

However, gate valves and butterfly valves also differ in their installation dimensions, operating mechanisms, and maintenance requirements.

For water distribution projects requiring conventional pipeline isolation, SOLID supplies ductile iron gate valves in resilient-seated and metal-seated configurations.

Where a flanged waterworks gate valve is specified, SOLID also supplies flanged ductile iron gate valve range.


Application Selection

Water Supply and Distribution

For clean-water pipeline isolation, start by confirming pressure, flange compatibility, seat material and required approvals.

An EPDM-seated configuration is commonly considered for water service, but potable-water projects may impose additional material or approval requirements. Include these requirements with the enquiry.

Wastewater Treatment

Wastewater service requires attention to both fluid composition and suspended material.

A resilient-seated butterfly valve can be considered for many water and wastewater isolation duties, but the exact solids condition should be provided where the wastewater contains abrasive or fibrous material.

Seawater and Corrosive Water

Do not select a U Type Butterfly Valve for seawater simply because an aluminum-bronze or stainless-steel disc is available.

The buyer should confirm the complete wetted-material combination, including the disc, shaft, seat and any exposed internal components.

Provide salinity, temperature and project material requirements for review.

Industrial Fluid Systems

For oil, air or chemical media, seat compatibility becomes a primary selection variable.

Instead of requesting an “industrial butterfly valve,” specify the exact medium, concentration where applicable, maximum operating temperature, pressure and preferred materials.


Custom U Section Butterfly Valves for Project Specifications

Solid can manufacture ductile iron valves according to customer drawings, samples and requirement specifications.

Confirmed customization capabilities include changes to:

  • dimensions;

  • shape;

  • materials;

  • manufacturing or process requirements.

For a custom U Type Butterfly Valve, send the pipeline or valve drawing together with the required DN, pressure rating, flange standard, face-to-face dimension, body material, disc material, stem material, seat material and operating method.

For replacement projects, providing an existing valve drawing or dimensional record can reduce the risk of flange, actuator or installation incompatibility.


Testing and Technical Documentation

The published U Type Butterfly Valve data includes hydrostatic shell and seat test pressures corresponding to the listed working-pressure classes.

Solid's production process for ductile iron valves includes casting, heat treatment, machining, quality inspection and testing. Technical catalogues, including a butterfly valve catalogue, are also available through the Technology Center.


FAQ

1.What is the difference between a U Type and wafer butterfly valve?

Both can be compact butterfly valve configurations, but their body and flange arrangements differ. Select according to the required body style, project standard, flange dimensions and installation arrangement rather than treating them as automatically interchangeable.

2. Can I order PN25 U Type Butterfly Valves?

PN25 is listed within Solid's published U Type Butterfly Valve information. Confirm the required DN with us because the current published size-pressure table does not establish PN25 availability across the complete DN50–DN1200 range.

3. Which seat should I select: EPDM or NBR?

Selection depends on the medium and operating temperature. EPDM is commonly considered for water service, while NBR is commonly considered where oil resistance is required. Provide the exact medium before the seat material is confirmed.

4. Can the U Type Butterfly Valve be supplied with an electric or pneumatic actuator?

Electric and pneumatic operation are both listed options. Provide the DN, PN and actuator control requirements so the valve and actuator configuration can be checked together.


Solid does not specify a fixed general MOQ. Order quantity can be discussed according to the valve size, specification and customization requirement.

Send your specification through the Contact Us page for technical review.



Ductile iron valves can be customized according to customer needs.

Customized ductile iron valves can be designed and manufactured according to specific dimensions, shapes, materials, and process requirements.


Customers can provide their own design drawings or requirement specifications, or communicate with suppliers to customize ductile iron valves that meet specific requirements. Customized ductile iron valves can meet the special needs of different engineering projects, improve the adaptability and reliability of the project.
