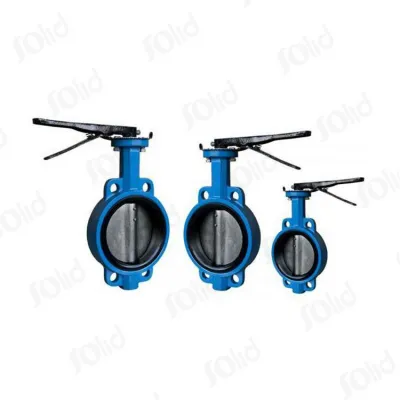

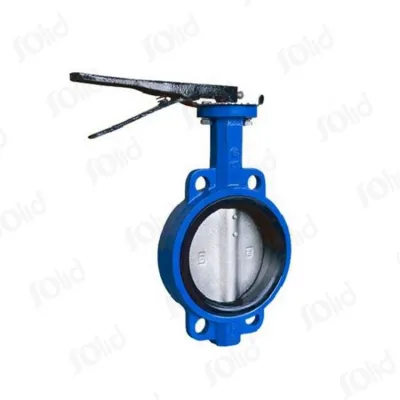

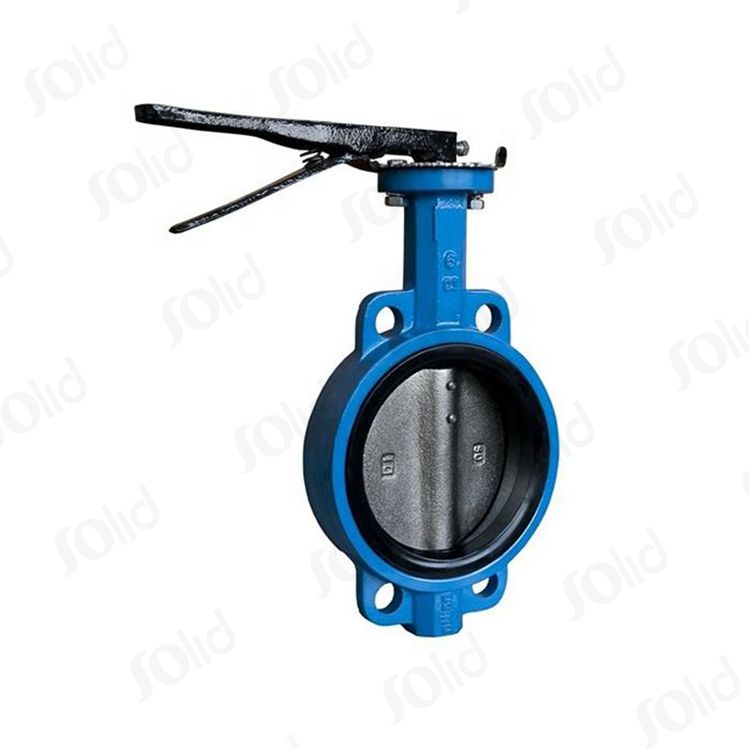

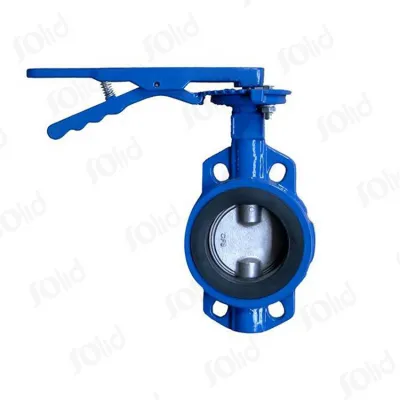

Wafer Type Butterfly Valve

Wafer Type Butterfly Valve

Wafer type  butterfly valve is a common industrial pipeline valve, mainly used to control fluid media in pipelines. Its characteristic is compact structure, especially suitable for places with narrow space or short pipeline spacing. The Wafer type  butterfly valve is connected between two pipeline flanges using double headed bolts, making installation and maintenance relatively convenient.

Applications

1. Used for gas pipelines in the sulfuric acid industry: inlet and outlet of furnace front blower, inlet and outlet of relay blower, series and connecting valves for electric mist removal, inlet and outlet of S02 main blower, converter adjustment, preheater inlet and outlet, etc., for regulating and cutoff gas volume.

2. Used in the sulfur burning, conversion, and dry absorption sections of sulfur based sulfuric acid systems, it is widely regarded by users as a butterfly valve with good sealing performance, light operation, corrosion resistance, high temperature resistance, easy and flexible operation, and safe and reliable use.

3. It is also widely used as a regulating and shut-off device in pipelines for media such as SO2, steam, air, coal gas, ammonia, CO2 gas, oil products, water, salt water, alkali solution, seawater, nitric acid, hydrochloric acid, sulfuric acid, phosphoric acid, etc. in industries such as chemical, petrochemical, smelting, pharmaceutical, and food.

Standard: EN593/ ISO 5752 /BS5155/AWWA C504

Flange drilling is according to DIN 2501, BS4504, ANSI B16.1

Working pressure: 10bar/16bar/25bar

Testing pressure:

Shell: 15bar/24bar/37.5bar

Seal: 11bar/17.6bar/27.5bar

Material:

Body: DI/CI /Carbon Steel/Stainless Steel

Disc: DI/Stainless steel 304/316, AL-Bronze

Shaft: Stainless steel410/416/420, Seat: EPDM/NBR

Coating: Internal and external with fusion bonded epoxy coating min250μm
