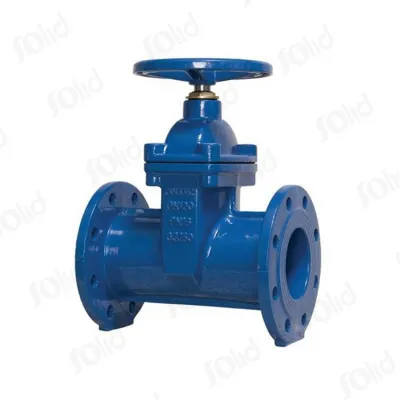

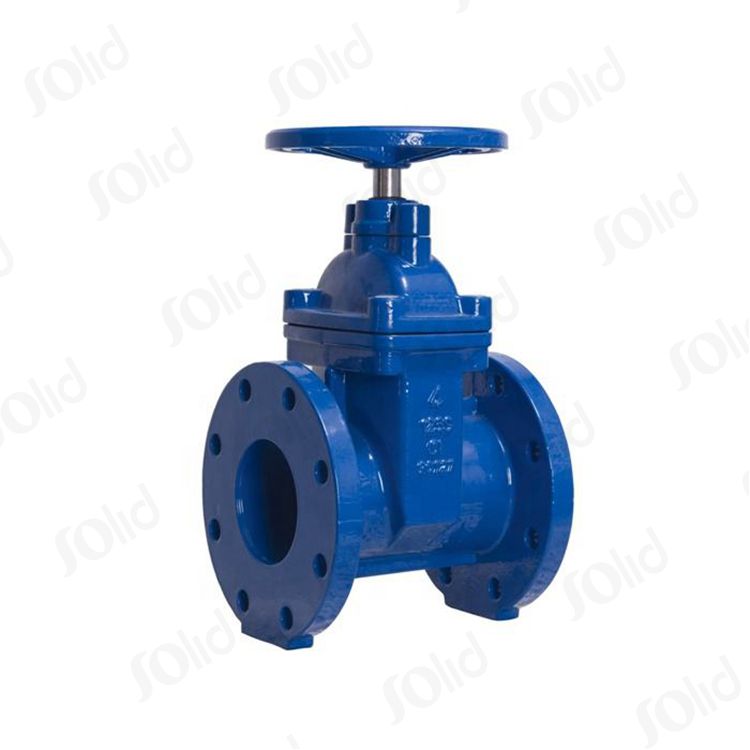

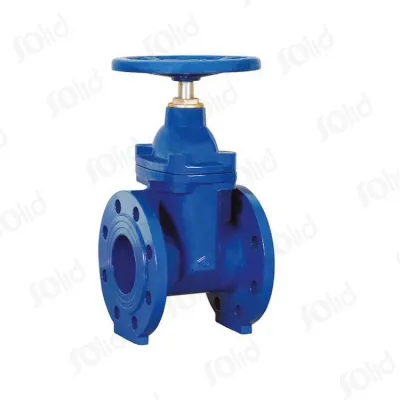

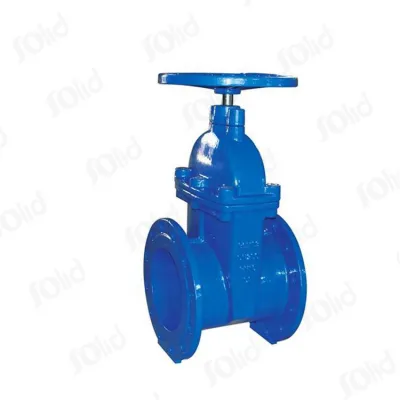

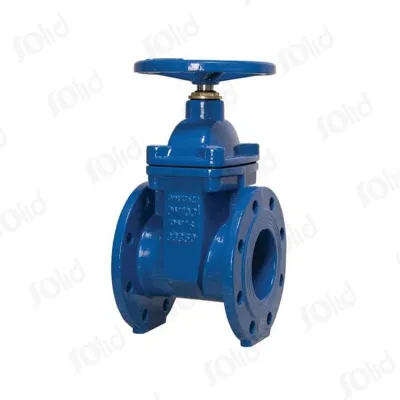

A Flanged End Gate Valve, made from ductile iron, features flanged connections for secure and easy installation. Shanxi Solid Industrial Co., Ltd., a Chinese Ductile Iron Flanged End Gate Valve manufacturer, specializes in producing high-quality ductile iron flanged end gate valves that meet DIN 3352-F4, DIN 3352-F5, BS5163, AWWA C509, and AWWA C515 standards. Available in both non-rising stem and rising stem types, this valve is designed for reliable flow control in various systems.
A Flanged End Gate Valve, made from ductile iron, features flanged connections for secure and easy installation. Shanxi Solid Industrial Co., Ltd., a Chinese Ductile Iron Flanged End Gate Valve manufacturer, specializes in producing high-quality ductile iron flanged end gate valves that meet DIN 3352-F4, DIN 3352-F5, BS5163, AWWA C509, and AWWA C515 standards. Available in both non-rising stem and rising stem types, this valve is designed for reliable flow control in various systems.Our valves are engineered to meet strict international standards, ensuring reliable shut-off and long service life.As a specialized flanged gate valve supplier, we provide a wide range of sizes and pressure ratings. The Flanged End Gate Valve is the most common type of valve used in industrial applications due to its easy installation and strong connection integrity. Whether you are managing a water treatment plant or an oil refinery, our valves provide the durability you need.
Standard: DIN 3352-F4, DIN 3352-F5, BS5163, AWWA C509, AWWA C515
Flange drilling is according to DIN2501, BS4504 and ANSI B16.1
Working pressure: 10bar/16bar/25bar
Testing pressure:
Shell: 15bar/24bar/37.5bar
Seal: 11bar/17.6bar/27.5bar
Type: non rising stem / rising stem
Material:
Body: Ductile iron GGG40/50 or Cast IronGG25
Wedge: Ductile iron GGG40/50+EPDM/NBR or metal seated
Stem: stainless steel 2Cr13 , SS304,SS316
Bolt and Nuts: Carbon Steel with zinc plated or SS304,316
Coating: Internal and external with fusion bonded epoxy coating min250μm
Product Dimensions:
| Standard | DIN 3352-F4, DIN 3352-F5, BS5163, AWWA C509，AWWA C515 Flange drilling is according to DIN2501, BS4504 and ANSI B16.1 |
| Working pressure | 10bar/16bar/25bar |
| Testing pressure： | / |
| Shell | 15bar/24bar/37.5bar |
| Seal | 11bar/17.6bar/27.5bar |
| Type | Non rising stem / rising stem |
| Material： | / |
| Body | Ductile iron GGG40/50 or Cast IronGG25 |
| Wedge | Ductile iron GGG40/50+EPDM/NBR or metal seated |
| Stem | Stainless steel 2Cr13 , SS304,SS316 |
| Bolt and Nuts | Carbon Steel with zinc plated or SS304,316 |
| Coating | Internal and external with fusion bonded epoxy coating min250μm |

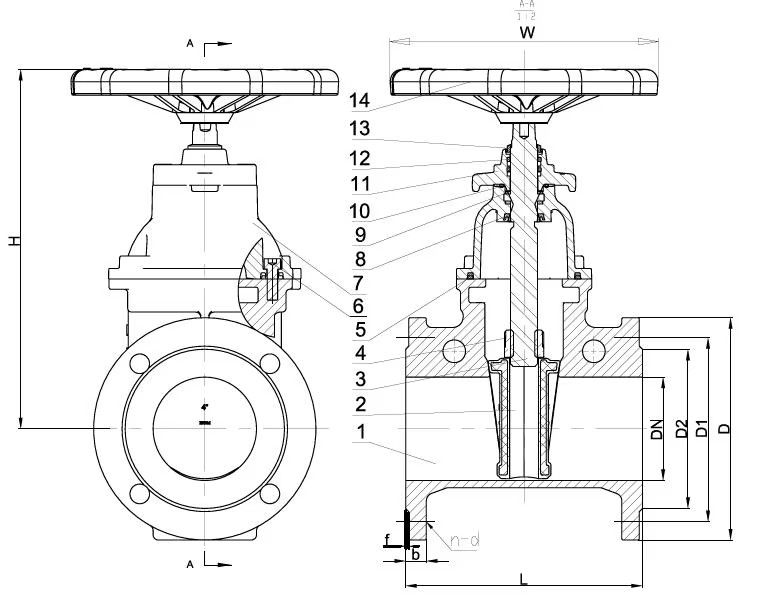

| NO. | PART NAME | MATERIAL |
| 1 | BODY | DUCTILE IRON |
| 2 | WEDGE | DUCTILE IRON |
| 3 | STEM NUT | BRASS |
| 4 | STEM | STAINLESS STEEL |
| 5 | GASKET | NBR |
| 6 | BONNET | DUCTILE IRON |
| 7 | BONNET BOLT | CARBON STEEL |
| 8 | O-RING | NBR |
| 9 | LOCATING RING | BRASS |
| 10 | O-RING | NBR |
| 11 | BONNET NUT | BRASS |
| 12 | MINIPAD | TFL |
| 13 | DUST RING | NBR |
| 14 | WHEEL | DUCTILE IRON |
| 15 | WASHER | CARBON STEEL |
| 16 | BOLT | CARBON STEEL |
This valve widely applied in the liquid pipes for opening or closing fixing in such water, sewage disposal, electric power, energetics pipe , chemical, shipping, energy sources etc.
If you require a Flanged End Gate Valve for a specific medium or temperature, please consult our engineering team for material recommendations.At Solid Valve, we go beyond just selling products. We provide solutions. As a top-tier flanged gate valve supplier, we offer:
OEM/ODM Services: Custom logo, packaging, and manufacturing based on your specific drawings.
Quality Assurance: Each Flanged End Gate Valve undergoes rigorous hydraulic and pneumatic testing before shipment.
Competitive Pricing: Direct factory pricing for wholesale gate valve orders, helping you reduce project costs.
We are committed to providing our clients with valves that stand the test of time.
a.American Standard
Design to ANSI/AWWA C509
Face to face dimension to ASME B16.10-2000(ISO 3 series)
Flange and drilling To SME/ANSI B16.42-1998
b.British Standard
Design to BS5163,BS5150
Face to face dimension to BS5163(ISO 3series,ISO19 series)
Flange and drilling To BS4504 part1(EN1092)
c.Germany Standard
Design to DIN3352
Face to face dimension to DIN3202(F4:ISO 14 series;F5: ISO 15 series)
Flange and drilling to BS EN1092
| DN | L | D | D1 | D2 | b | f | n-d | H | W |
|---|---|---|---|---|---|---|---|---|---|
| 50 | 178 | 150 | 114 | 90 | 18 | 3 | 4-18 | 270 | 180 |
| 65 | 190 | 165 | 127 | 103 | 18 | 3 | 4-18 | 280 | 180 |
| 80 | 203 | 185 | 146 | 122 | 18 | 3 | 4-18 | 290 | 200 |
| 100 | 229 | 215 | 178 | 154 | 20 | 3 | 4-18 | 315 | 200 |
| 150 | 267 | 280 | 235 | 211 | 23 | 3 | 8-18 | 410 | 280 |
| 200 | 292 | 335 | 292 | 268 | 23 | 3 | 8-18 | 515 | 320 |
| 225 | 330 | 405 | 324 | 300 | 24 | 3 | 8-18 | 560 | 320 |
| 250 | 330 | 405 | 356 | 328 | 24 | 3 | 8-22 | 605 | 320 |
| 300 | 356 | 455 | 406 | 378 | 30 | 4 | 12-22 | 695 | 450 |
| 350 | 381 | 525 | 470 | 438 | 33 | 4 | 12-26 | 790 | 450 |
| 375 | 406 | 580 | 795 | 463 | 33 | 4 | 12-26 | 880 | 450 |
| 400 | 406 | 580 | 521 | 489 | 33 | 4 | 12-26 | 970 | 560 |
| 450 | 432 | 640 | 584 | 552 | 33 | 4 | 12-26 | 1045 | 560 |
| 500 | 457 | 705 | 641 | 609 | 35 | 4 | 16-26 | 1120 | 800 |
| 600 | 508 | 825 | 756 | 720 | 42 | 5 | 16-30 | 1320 | 800 |
