Home > Products > ;Plastic Valve > ;PVC Globe Valve

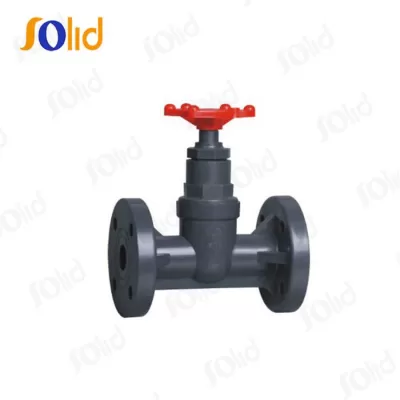

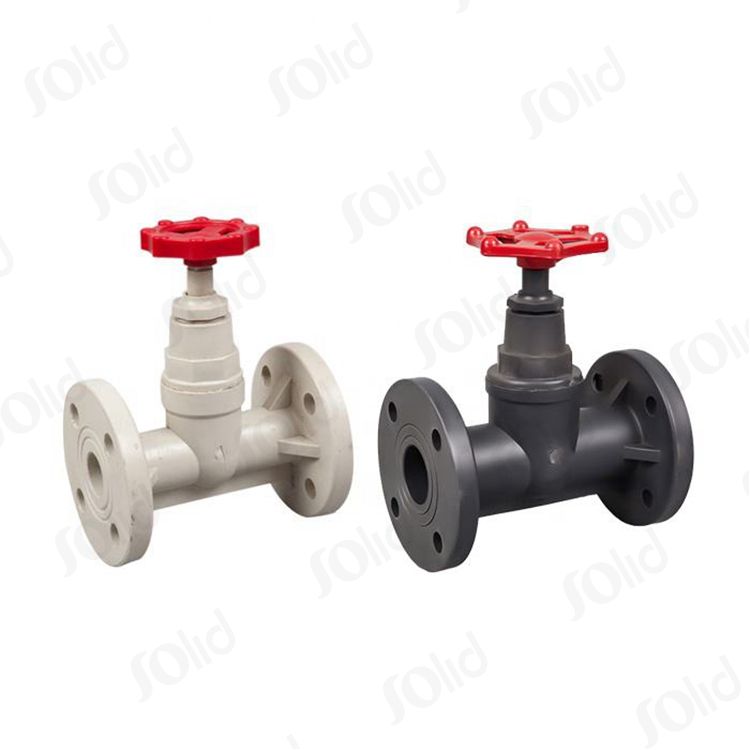

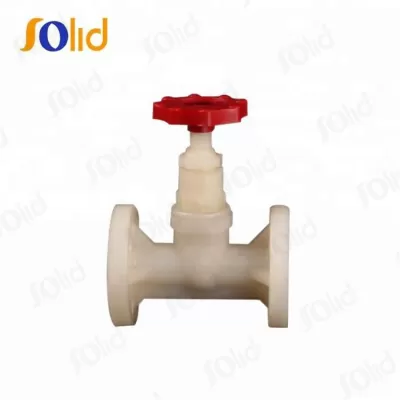

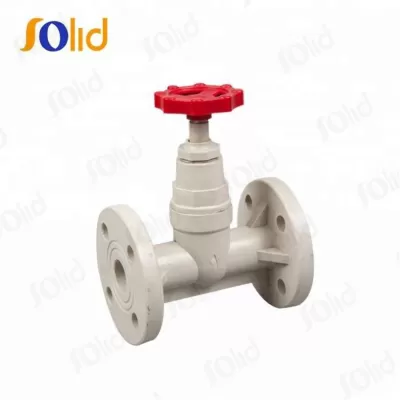

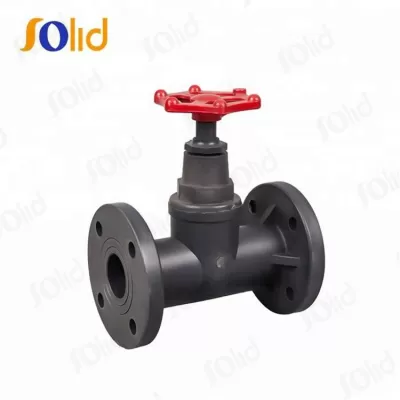

Valve Type: Flanged PVC Globe Valve
Body Material: PVC-U, PVC-C, PVDF, PPH, RPP
Seat Material: PTFE
Disc Material: PVC-U, CPVC, PVDF, PPH
Connection Type: Flanged connection
Operation: Hand wheel operated Plastic Globe Valve
Application: Industrial and water treatment pipeline systems
Function: Flow regulation and shut-off
Our is a PVC globe valve manufacturer and supplier in China, providing industrial plastic globe valves for water treatment, chemical processing, wastewater systems, and industrial liquid pipelines. Our standard flanged PVC globe valves are available from DN15 to DN200 (1/2"–8"), with working pressure ratings of 0.4–0.6 MPa, manual handwheel operation, and DIN PN10, ANSI Class 150, or JIS 10K flange-compatible connections.
We manufacture and supply UPVC globe valves, CPVC globe valves, PVDF globe valves, PPH globe valves, and RPP globe valve configurations, with PTFE valve seats and corresponding thermoplastic disc materials. Our product range also includes optional pressure configurations up to PN10 and PN16 for applicable designs, alternative end connections, special sealing components, and automated globe valve assemblies.
SOLID supports wholesale orders, OEM manufacturing, and customized industrial valve supply. We provide standard product configurations as well as custom materials, valve dimensions, pressure ratings, connections, bonnet structures, actuators, markings, and packaging for equipment manufacturers, valve distributors, and engineering contractors. For other thermoplastic valve types, see our Plastic Valve Product Range.
Our standard PVC globe valve is a handwheel-operated, flanged plastic valve with a rising and lowering disc for flow regulation and shut-off. We supply different body and disc materials within our DN15–DN200 range, together with custom connections, pressure configurations, and valve constructions.
| Parameter | Standard Range | Custom / Optional Range |
|---|---|---|
| Product Name | PVC Globe Valve / Plastic Globe Valve | UPVC, CPVC, PVDF, PPH and FRPP Globe Valve Configurations |
| Nominal Size | DN15–DN200 (1/2"–8") | Project-specific dimensions and special constructions |
| Working Pressure | 0.4–0.6 MPa (4–6 bar) | PN10 (1.0 MPa) and PN16 (1.6 MPa) for applicable custom designs |
| Valve Pattern | Straight-Pattern Globe Valve | Special globe valve constructions |
| Body Material | PVC-U, PVC-C, PVDF, PPH, RPP | FRPP, PP-GF and special thermoplastic configurations |
| Disc Material | PVC-U, CPVC, PVDF, PPH | Special disc materials and profiles |
| Seat Material | PTFE | EPDM, FPM/FKM and other compatible sealing configurations |
| Stem Material | Steel, stainless steel or specified thermoplastic components, depending on construction | SS304, SS316 and protected or nonmetallic stem designs |
| End Connection | Flanged | Socket, Threaded, Union-End and special connections |
| Flange Compatibility | DIN PN10, ANSI Class 150, JIS 10K | EN 1092 and project-specific flange patterns |
| Valve Operation | Manual Handwheel | Electric / Pneumatic Actuation |
| Bonnet Construction | Product-specific standard bonnet | Union Bonnet, OS&Y and special bonnet designs |
| Main Function | Flow Regulation / Shut-Off | Special throttling disc configurations |
| Handwheel Material | ABS | Other suitable handwheel materials and OEM colors |
| OEM Service | Custom Sizes, Pressure Ratings, Flange Standards, Branding and Packaging | Custom Materials, Internal Components, Actuation and Markings |
We supply multiple thermoplastic globe valve material configurations for industrial pipeline projects. Our standard product range includes flanged, handwheel-operated valves, while the custom range adds alternative pressure classes, connections, and valve constructions.
| Product Configuration | Size Range | Pressure Range | Connection |
|---|---|---|---|
| UPVC Globe Valve | DN15–DN200 | 0.4–0.6 MPa | Flanged |
| CPVC Globe Valve | DN15–DN200 series | 0.4–0.6 MPa series | Flanged |
| PVDF Globe Valve | DN15–DN200 series | According to selected configuration | Flanged |
| PPH Globe Valve | DN15–DN200 series | According to selected configuration | Flanged |
| RPP Globe Valve | DN15–DN200 series | According to selected configuration | Flanged |
| FRPP Globe Valve | Applicable project sizes | Project-specific | Flanged / Special Connection |
| PN10 Plastic Globe Valve | Applicable sizes | 1.0 MPa | Flanged / Optional End Connection |
| PN16 Plastic Globe Valve | Applicable special designs | 1.6 MPa | Project-specific |
| Socket / Threaded Globe Valve | Mainly smaller-diameter designs | Matching valve construction | Socket / Threaded |
| Electric / Pneumatic Globe Valve | Applicable valve sizes | Matching valve construction | Flanged / Custom |
Our UPVC globe valves are supplied with PVC-U valve bodies, matching thermoplastic discs, PTFE seats, and manual handwheel operation. Standard flanged configurations cover DN15–DN200 and 0.4–0.6 MPa.
We supply UPVC globe valves for industrial water treatment, process water distribution, wastewater treatment, and compatible chemical-liquid pipelines. DIN PN10, ANSI Class 150 and JIS 10K flange-compatible options are available.
SOLID supplies CPVC globe valves with PVC-C body and disc configurations, PTFE sealing components, and flanged end connections.
Our CPVC range provides an additional thermoplastic material choice for chemical processing and elevated-temperature liquid applications. We offer special sealing materials, alternative connections, and custom pressure configurations for suitable CPVC valve designs.
We also supply industrial plastic globe valves in PVDF, PPH, and RPP material configurations.
PVDF Globe Valves: Available with PVDF body and disc materials, PTFE sealing options, and custom components for compatible chemical-processing applications.
PPH Globe Valves: Available with polypropylene homopolymer components, flanged connections, and alternative sealing configurations.
RPP Globe Valves: Available with reinforced polypropylene material configurations for suitable industrial piping applications.
FRPP Globe Valves: Available as customized reinforced polypropylene valve constructions with applicable body, bonnet, and internal component materials.
These thermoplastic material options are supplied as distinct product configurations rather than interchangeable material labels on one valve model.
SOLID supplies different body, disc, bonnet, stem, and sealing materials for plastic globe valves. Our standard globe valve series uses PTFE seats, with optional elastomer seals and alternative internal component materials available for customized products.
| Material | Available Product Configuration | Main Product Applications | Supply Type |
|---|---|---|---|
| PVC-U / UPVC | PVC-U Body / PVC-U Disc | Water treatment, wastewater, industrial water pipelines | Standard |
| PVC-C / CPVC | CPVC Body / CPVC Disc | Compatible chemical liquids and elevated-temperature process water | Standard / Custom |
| PVDF | PVDF Body / PVDF Disc | Corrosive chemical processing and specialized industrial liquids | Standard Material / Custom Assembly |
| PPH | PPH Body / PPH Disc | Chemical processing and compatible industrial liquid systems | Standard Material / Custom Assembly |
| RPP | Reinforced Polypropylene Body Configuration | Industrial plastic pipeline applications | Standard Material / Custom Assembly |
| FRPP / PP-GF | Reinforced Polypropylene Body and Bonnet | Custom industrial globe valve designs | Custom |
| Component | Standard Material | Custom / Optional Material |
|---|---|---|
| Valve Seat | PTFE | Alternative compatible seat constructions |
| Disc Sealing Components | According to selected valve assembly | EPDM / FPM (FKM) / NBR |
| O-Rings and Gaskets | Applicable standard sealing components | EPDM / FKM / NBR |
| Stem Packing | According to valve construction | PTFE and suitable application-specific packing |
| Valve Stem | Steel, stainless steel or thermoplastic material by design | SS304 / SS316 / Protected or Nonmetallic Configurations |
| Valve Bonnet | Material matched to product configuration | PVC-U / CPVC / PPH / FRPP / PVDF |
| Handwheel | ABS | Alternative materials and OEM colors |
| Bolts and Nuts | Steel / Stainless Steel | SS304 / SS316 and suitable corrosion-resistant fasteners |
Our PTFE seat configuration is part of the standard PVC globe valve product specification. EPDM, FKM, and NBR options are supplied as appropriate sealing components in customized assemblies.
For OEM orders, we also supply custom body-and-disc combinations, internal parts, and bonnet constructions with corresponding product identification and drawings.
Our flanged PVC globe valves are available in DN15–DN200 with DIN, ANSI and JIS flange compatibility. We also offer custom connections and dimensional configurations for equipment manufacturing and pipeline replacement projects.
| Connection Type | Available Specification |
|---|---|
| Flanged | DIN PN10 |
| Flanged | ANSI Class 150 Flange Compatibility |
| Flanged | JIS 10K |
| Flanged | EN 1092 and Special Flange Patterns |
| Socket End | Suitable smaller-diameter globe valve constructions |
| Threaded End | Suitable smaller-diameter globe valve constructions |
| Union End | Removable-end globe valve construction |
| Special Connection | Customer-specified dimensions and connection drawings |
| Nominal Diameter | Approximate Inch Size |
|---|---|
| DN15 | 1/2" |
| DN20 | 3/4" |
| DN25 | 1" |
| DN32 | 1-1/4" |
| DN40 | 1-1/2" |
| DN50 | 2" |
| DN65 | 2-1/2" |
| DN80 | 3" |
| DN100 | 4" |
| DN125 | 5" |
| DN150 | 6" |
| DN200 | 8" |
We also offer project-specific dimensional configurations, including face-to-face length, flange geometry, open height and handwheel dimensions.
SOLID supplies handwheel-operated globe valves for multi-turn flow regulation and pipeline shut-off. Our standard flanged products use a disc-and-seat arrangement, while custom designs offer alternative bonnet structures, disc profiles and operation methods.
| Valve Component / Structure | Standard Configuration | Custom Configuration |
|---|---|---|
| Valve Pattern | Straight Pattern | Special Globe Valve Construction |
| Valve Operation | Manual Handwheel | Electric / Pneumatic |
| Disc | Standard Plastic Globe Valve Disc | Tapered or Special Disc Profile |
| Seat | PTFE | Alternative Seat and Sealing Configurations |
| Bonnet | Standard Bonnet Construction | Union Bonnet / OS&Y / Special Bonnet |
| Stem | Material According to Valve Construction | Stainless Steel / Protected or Nonmetallic Design |
| End Connection | Flanged | Socket / Threaded / Union |
| Flow Control | Multi-Turn Throttling and Shut-Off | Specialized Disc and Operating Configurations |
Our standard PVC globe valves are handwheel-operated. We also supply custom electric and pneumatic globe valve assemblies with actuator-compatible valve structures.
| Operation Type | Available Configuration |
|---|---|
| Manual Globe Valve | Handwheel Operation |
| Electric Globe Valve | Custom Electric Actuator Assembly |
| Pneumatic Globe Valve | Custom Pneumatic Actuator Assembly |
| Actuator Mounting | Suitable Bracket and Valve Stem Configuration |
| Control Options | On/Off or Suitable Modulating Operation |
| Position Feedback | Optional for Applicable Actuated Assemblies |
Automated globe valves are supplied with a matching valve stem, mounting arrangement, and actuator configuration rather than as a universal attachment to every standard handwheel-operated model.
SOLID provides custom PVC globe valve manufacturing for valve distributors, industrial equipment manufacturers, chemical processing projects, and OEM customers.
Our customization services cover body materials, valve dimensions, pressure ratings, end connections, internal parts, bonnet structures, operation methods, product markings, colors, and packaging.
| Customization Item | Available Custom Range |
|---|---|
| Pressure Rating | PN10 / 1.0 MPa and PN16 / 1.6 MPa for applicable designs |
| Custom Material | PVC-U, CPVC, PVDF, PPH, RPP, FRPP, PP-GF |
| Disc Material | PVC-U, CPVC, PVDF, PPH and special thermoplastic configurations |
| Seat and Seals | PTFE, EPDM, FKM, NBR and applicable custom sealing components |
| Valve Stem | SS304, SS316 and protected or nonmetallic configurations |
| Valve Size | Project-specific dimensions within suitable globe valve designs |
| End Connection | Flanged, Socket, Threaded, Union End |
| Flange Standard | DIN, ANSI, JIS, EN 1092 and custom patterns |
| Valve Bonnet | Union Bonnet, OS&Y and other applicable constructions |
| Valve Disc | Special profiles and flow-regulation configurations |
| Operation | Manual, Electric, Pneumatic |
| Product Color | Standard or OEM-selected colors |
| Product Marking | Custom Logo, Model Number, Project Identification |
| Packaging | OEM Cartons, Custom Export Packaging |
| Technical Drawings | Customer Drawing-Based Production |
Our standard plastic globe valves cover 0.4–0.6 MPa. We also offer PN10 globe valves and special PN16 configurations for suitable valve sizes and structures.
Custom connection options include socket, threaded, union-end and special flanged constructions. These products are supplied as distinct configurations with corresponding body, bonnet, sealing and dimensional arrangements.
We support OEM globe valve orders with custom product colors, logos, markings, packaging, and technical configurations.
Distributors and equipment manufacturers can purchase multiple body materials, nominal sizes and connection standards within a combined order. SOLID also supplies products manufactured according to customer drawings and specified material requirements.
SOLID supplies PVC and other thermoplastic globe valves for liquid flow regulation and shut-off in industrial water, chemical processing, wastewater and equipment piping systems.
| Application | Available SOLID Globe Valve Configuration | Main Product Options |
|---|---|---|
| Industrial Water Treatment | UPVC Globe Valve | DN15–DN200, 0.4–0.6 MPa, Flanged, PTFE Seat |
| Wastewater Treatment | PVC-U / PPH Globe Valve | Manual Handwheel, Alternative Seals and Flange Options |
| Chemical Processing | CPVC / PVDF Globe Valve | PTFE Seat, Custom Sealing and Internal Components |
| Acid and Alkali Handling | Suitable CPVC / PVDF / PPH Globe Valve | Material-Matched Disc and Sealing Configurations |
| Industrial Process Water | Flanged PVC Globe Valve | DIN / ANSI / JIS Connections |
| Chemical Equipment Manufacturing | Custom Plastic Globe Valve | Socket / Threaded / Flanged, Special Materials |
| Industrial Liquid Regulation | Globe Valve with Custom Disc Design | Manual or Custom Automated Operation |
| OEM Pipeline Assemblies | Custom PVC Globe Valve | Project Dimensions, Product Marking and Packaging |
For projects requiring a diaphragm-based valve structure, SOLID also supplies PVC Diaphragm Valves, including UPVC and CPVC configurations.
We provide PVC Butterfly Valves for quarter-turn isolation and larger pipe sizes, as well as PVC True Union Ball Valves for removable-end shut-off applications.
SOLID supplies wholesale PVC globe valves for valve distributors, OEM equipment manufacturers, industrial projects, and international procurement companies.
We offer standard DN15–DN200 flanged globe valves, different thermoplastic materials, and custom configurations covering pressure classes, connections, bonnet structures, operation methods, and product identification.
| Purchasing Item | SOLID Supply |
|---|---|
| Standard Products | DN15–DN200 Flanged PVC Globe Valves |
| Standard Working Pressure | 0.4–0.6 MPa |
| Standard Operation | Manual Handwheel |
| Body Materials | PVC-U, CPVC, PVDF, PPH, RPP |
| Custom Materials | FRPP, PP-GF and other applicable thermoplastic configurations |
| Custom Pressure | PN10 / PN16 for suitable designs |
| Custom Connections | Socket, Threaded, Union End and special flanges |
| Automated Configurations | Electric / Pneumatic Globe Valve Assemblies |
| OEM Orders | Custom Logo, Color, Marking and Packaging |
| Mixed Product Orders | Multiple Sizes, Materials and Product Configurations |
| MOQ | 1 Set |
| Lead Time | 7-20 days |
| Export Packaging | Standard or customer-specified packaging |
| Technical Drawings | Custom dimensions and drawing-based production |
We supply standard flanged PVC globe valves from DN15 to DN200 (1/2"–8").
Our available sizes include DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150 and DN200. We also offer project-specific dimensional configurations and OEM products.
Our standard PVC globe valve range has a published working pressure of 0.4–0.6 MPa.
We also supply PN10 (1.0 MPa) configurations and special PN16 (1.6 MPa) designs for applicable product sizes and materials. These higher-pressure products use their own valve constructions and specifications.
Yes. We supply UPVC, CPVC and PVDF globe valves, together with PPH and RPP material configurations.
We also offer custom FRPP, reinforced polypropylene and other applicable thermoplastic valve options. These materials are supplied with corresponding disc, bonnet and sealing configurations.
Yes. Our standard PVC globe valve specification includes a PTFE seat.
We also offer alternative sealing materials such as EPDM, FKM and NBR within suitable custom constructions, including optional O-ring, gasket and packing configurations.
Yes. Our standard product uses flanged connections, and we offer socket, threaded and union-end globe valve configurations as custom options.
These are supplied with the corresponding valve body and end-connection constructions.
Yes. SOLID supplies flanged PVC globe valves with DIN PN10, ANSI Class 150 and JIS 10K flange compatibility.
We also offer custom flange patterns and dimensional configurations for equipment manufacturing and replacement projects.
Yes. Electric and pneumatic plastic globe valves are available through our custom manufacturing range.
We supply suitable valve stem, bonnet, actuator mounting and control configurations for these assemblies. Our standard product remains the handwheel-operated flanged globe valve.
SOLID supplies DN15–DN200 flanged PVC globe valves for industrial water treatment, chemical processing, equipment manufacturing, and pipeline projects. Our product range includes UPVC, CPVC, PVDF, PPH and RPP globe valves with PTFE seat configurations, manual handwheel operation, and DIN, ANSI or JIS flange compatibility.
We also provide custom PN10 and applicable PN16 designs, FRPP material options, socket and threaded connections, special bonnet and disc configurations, electric or pneumatic actuation, and OEM manufacturing services. Whether you require standard PVC globe valves for wholesale distribution or customized plastic globe valves for an industrial project, we offer product configurations and quotations covering your specified requirements.
Contact SOLID for PVC Globe Valve Pricing, Wholesale Orders and OEM Manufacturing. Send us your required sizes, materials, pressure ratings, connection types and quantities to receive a detailed quotation for your next order.
Related Products
Shanxi Solid Industrial Co., Ltd. is located in the heavy industry province of Shanxi, China with rich resources of pig irons, coke, steel and other industrial raw materials, we are one of the leading manufacturers of butterfly valves, gate valves, check valves, ball valves, air valves, globe ...
Ductile iron valves can be customized according to customer needs.
Customized ductile iron valves can be designed and manufactured according to specific dimensions, shapes, materials, and process requirements.
Customers can provide their own design drawings or requirement specifications, or communicate with suppliers to customize ductile iron valves that meet specific requirements. Customized ductile iron valves can meet the special needs of different engineering projects, improve the adaptability and reliability of the project.
Get In Touch
Please leave your request for any product you wish. We will be happy to search it for you in our databases or offer its custom synthesis.
English
