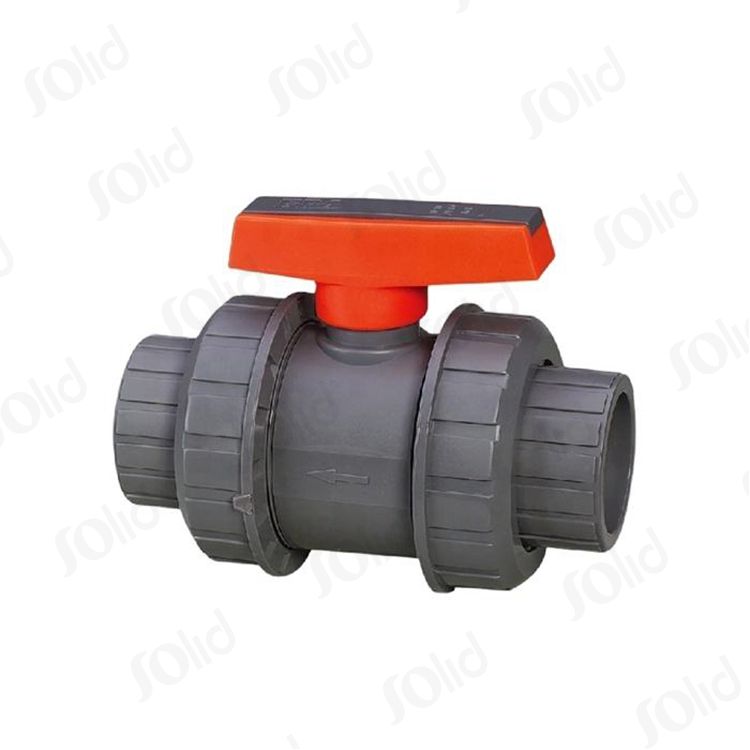

  • PVC True Union Ball Valve

PVC Union Ball Valve

Main MaterialUPVC
Size range1 inch~4 inch
Color of valveDark Grey /Blue/White
To connectSocket/thread/flange/thread
Pressure range1.0mpa~1.6mpa
ApplicationGeneral
Accord toDIN, BS, ANSI, CNS; NPT, BSPT, JIS
JointsRubber Ring Joints / Solvent Welding Joints/thread joints
Applicationwastewater treatment, chemical industry, portable water


PVC Union Ball Valve


PVC True Union Ball Valve Product Description


Our PVC True Union Ball Valve combines robust construction with versatile connection options, making it the ideal choice for general-purpose fluid control in wastewater treatment, chemical processing, and potable water systems. Engineered from premium UPVC materials with optional reinforced PP + GF30% components, this valve delivers reliable sealing, low maintenance, and easy on‑site servicing without the need for specialized tools. Available in sizes from 1″ to 4″ (DN15–DN100) and multiple color options (Dark Grey, Blue, White, Light Grey), it complies with international standards (DIN, BS, ANSI, JIS, CNS) and offers ANSI 150 psi (1.0–1.6 MPa) pressure ratings to meet diverse industrial requirements.


Key Features & Specifications


Main MaterialUPVC
Size range1 inch~4 inch
Color of valveDark Grey /Blue/White
To connectSocket/thread/flange/thread
Pressure range1.0mpa~1.6mpa
ApplicationGeneral
Accord toDIN, BS, ANSI, CNS; NPT, BSPT, JIS
JointsRubber Ring Joints / Solvent Welding Joints/thread joints
Applicationwastewater treatment, chemical industry, portable water

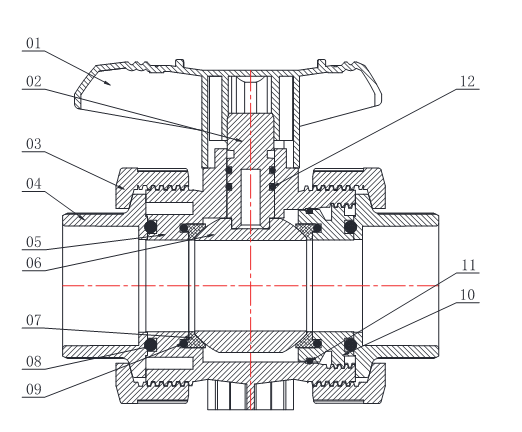

MATERIAL
No.PartsQuantityMaterial
01Lever1PVC-U/PP+GF30%
02Shaft1PVC-U/PVC-C
03Nut2PVC-U/PVC-C
04Threaded Faucet2PVC-U/PVC-C
05Body1PVC-U/PVC-C
06Ball1PVC-U/PVC-C
07Ball seat2PTFE/TPE+PP
08O-ring12EPDM/FPM
09O-ring22EPDM/FPM
10Seal-Carrier1PVC-U/PVC-C
11O-ring31EPDM/FPM
12O-ring42EPDM/FPM

Products Dimensions:

Item DescriptionPVC Flanged True Union Ball Valve
Valve MaterialPolyvinyl chloride ,PVC
Dimension rangeDN15~DN100
Color detailsBlue/White/Dark Grey/Light Grey
How to connectSocket/thread/cement/thread
Pressures150psi
MediaWater
StandardDIN, BS, ANSI, JIS; NPT, BSPT, CNS
CertificationsISO14001,ISO9001
Packingcarton, polybag or customized


FAQ


1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.

2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.

3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.

4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.

5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.



6. What's your terms of payment?
A: T/T, L/C , Alibaba Trade Assurance available, full protection for your orders.



7.Do you accept custom design on size?
A: Yes, if the size is reasonable


Ductile iron valves can be customized according to customer needs.

Customized ductile iron valves can be designed and manufactured according to specific dimensions, shapes, materials, and process requirements.


Customers can provide their own design drawings or requirement specifications, or communicate with suppliers to customize ductile iron valves that meet specific requirements. Customized ductile iron valves can meet the special needs of different engineering projects, improve the adaptability and reliability of the project.
