Home > Products > ;Brass Valve > ;Brass Y Strainer
Sizes: 1/2 x 3/4 x 1, 1-1/4 x 1-1/2 x 2 x 2-1/2 x 3 x 4 inches
Used in water, oil and air
Temperature: minimum -15ºC, maximum +120ºC
Nominal pressure: maximum 16 bars
Threaded F/F ISO228/1

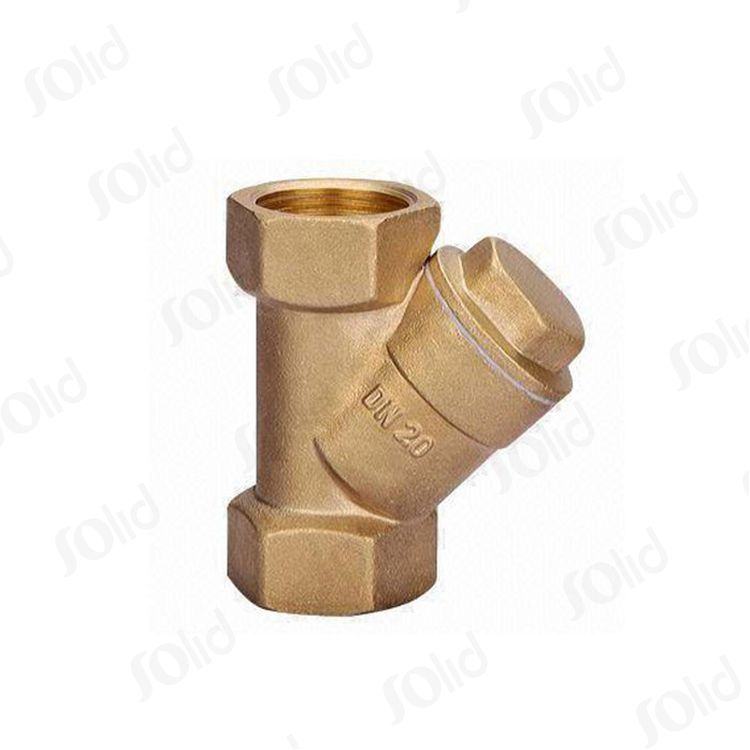

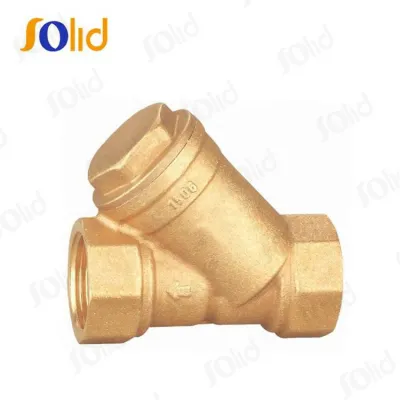

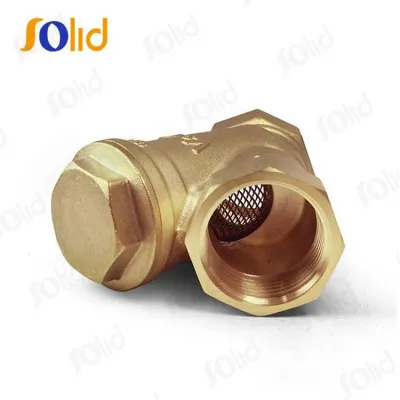

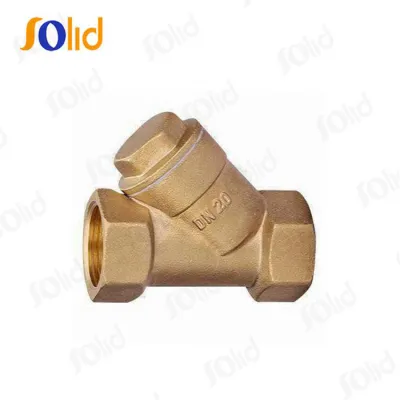

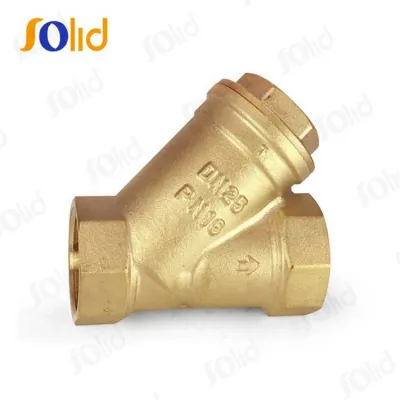

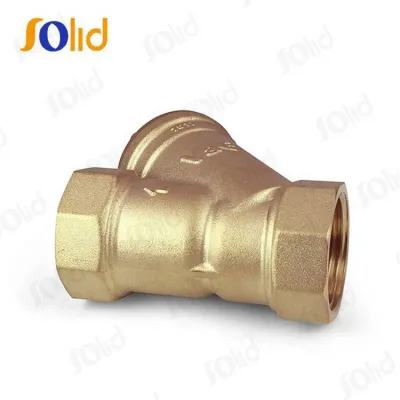

Solid’s Threaded Brass Y strainer for media up to 16 BAR (235 PSI). Features a 1mm (also know as 18 mesh or 1000 micron) stainless steel perforated screen on a 60 degree angle to effectively remove suspended particles. Great for screening a line before a control valve or to stop contaminates spreading further down your line and potentially damaging property. Suited for water, gases and other non corrosive media with temperatures from -20°C to 150°C.
| Part | Material |
| Body | Brass: Hpb57-3, Hpb59-1, CW614N, CW617N, DZR, Lead free |
| Filter net | Stainless steel, stainless iron |
| Stem | Brass as above, plastic |
| Sealing | Plastic, PTFE/TEFLON |
| Temperature: -20°C≤T≤150°C |
| Pressure: P≤3.0MPa=30bar=435psi |
| Medium: Water,Oil,Gas,etc. |
| Thread: F×F threaded as ISO228,BSP,NPT,UNION,ect. |
| Full port. |
| Surface treatment: brass yellow,nickel plated,chrome plated. |
| 1/4'' | 3/8'' | 1/2'' | 3/4'' | 1'' | 1-1/4'' | 1-1/2'' | 2'' | 2-1/2'' | 3'' | 4'' |
Product Dimensions:
1. Size: 1/2''-4'', DN15 to DN100.
2. Brass material: CuZn39Pb2, CW617n, CW614n, MS58
3. Body finish: brass natural color, nickle plated
4. Port: standard flow, full flow, reduced flow
5. Filter: SS304
6. Working pressure: 1.6 Mpa - 2.0Mpa
7. Thread: NPT, BSP, BSPT
8. Working Medium: Water, oil, gas
9. Working temperature: -20°C ~120°C
10. Connection: BSP/ISO228/NPT threaded or flange/welding connection available
Material: brass or can be customized
Sizes: 1/2 x 3/4 x 1, 1-1/4 x 1-1/2 x 2 x 2-1/2 x 3 x 4 inches
Used in water, oil and air
Temperature: minimum -15ºC, maximum +120ºC
Nominal pressure: maximum 16 bars
Threaded F/F ISO228/1
Others products: brass fittings, brass angle valves/ball valves/check valves/filter valves/gas valves/radiator valves and more
Payment term: L/C and T/T
Packing:
Standard exporting package: carton and pallets
Customized requirements are welcome
Delivery time: within 35 days after order confirmed
1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.
2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.
6. What's your terms of payment?
A: T/T, L/C , Alibaba Trade Assurance available, full protection for your orders.
7.Do you accept custom design on size?
A: Yes, if the size is reasonable
Reliable Performance: Solid’s Threaded Brass Y Strainer effectively removes suspended particles, ensuring smooth fluid flow and preventing damage to downstream equipment.
High Pressure & Temperature Resistance: Rated for media up to 16 BAR (235 PSI) and operational temperatures from -20°C to 150°C, ideal for water, gas, and other non-corrosive media.
Durable Materials: Constructed from high-quality brass (Hpb57-3, Hpb59-1, CW614N, CW617N) and stainless steel (for the filter net), ensuring long-lasting durability and reliability.
Versatile Compatibility: Available in a range of sizes (1/4” to 4”) and compatible with various screw threads (ISO228, BSP, NPT, UNION, etc.), making it suitable for different piping systems.
Precise Filtration: Features a 1mm stainless steel perforated screen (18 mesh or 1000 microns) on a 60-degree angle, effectively screening out contaminants to protect sensitive equipment.
Easy Maintenance: Brass construction with surface treatments (brass yellow, nickel-plated, chrome-plated) offers ease of cleaning and extended lifespan.
Get in Touch with Solid Today to explore our full range of valves and strainers designed to meet your specific needs and ensure optimal performance in your piping systems.
