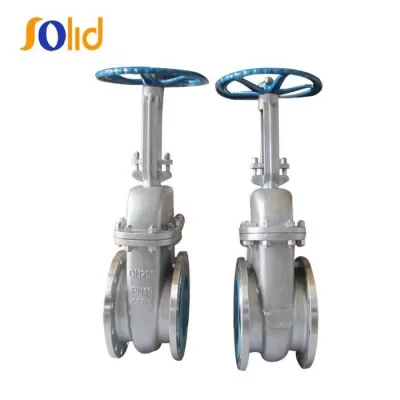

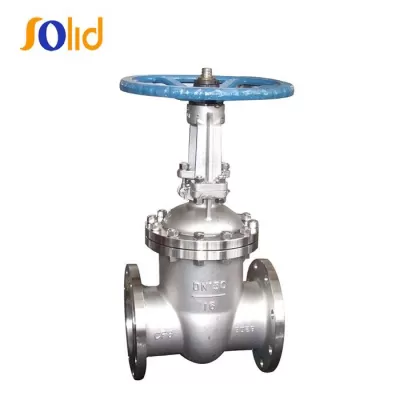

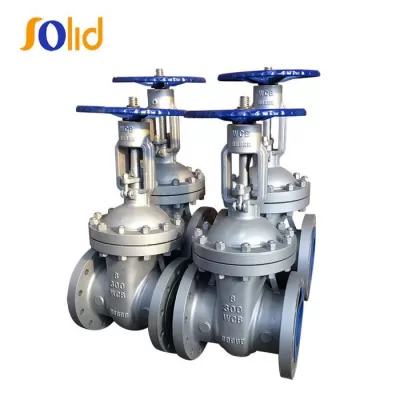

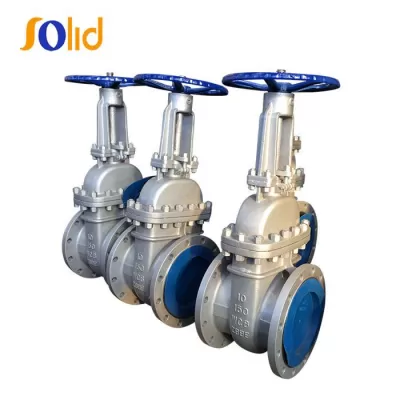

Stainless Steel Flanged Gate Valve

Stainless steel flanged gate valves are valves primarily made of stainless steel, offering advantages such as corrosion resistance, high-temperature resistance, and low-temperature resistance. They are widely used in industries such as chemicals, petroleum, natural gas, and pharmaceuticals. Stainless steel gate valves typically adopt a plate gate valve structure design, featuring top bolts, adjustable screws, and static electricity prevention, making them suitable for various industrial applications. Additionally, stainless steel gate valves offer excellent sealing performance, low opening/closing torque, and flexible operation, capable of meeting the specific requirements of industrial production.

This valve is a fully flanged unit that is designed to be bolted into the pipeline using flange connections. Both stainless steel and cast steel material avaible for this type.

Specification Details:

Design Std: DIN 3352, DIN EN 12516-2

Size:DN50--DN600

Body: Cast Steel WCB, GS-C25, Stainless Steel A351-CF8, CF8M, CF3, CF3M

Wedge: Stainless steel 304,316

Pressure Rating: PN25, PN40

Seat: Stainless Steel - AISI 420, 304,316

Bolted Bonnet; Outside Screw & Yoke

Face to Face:EN558-1 Series 15 (DIN 3202 F5)

Flanges drilled: Flange Drilling:DIN2501 PN25-40

Leakage rate B according to EN 12266-1

Temperature range: -10°C/+180°C

Materials: CF8, CF8M

Dimension: 1/4"-4"

Working pressure: 200 PSI

Flanged end

Features:

Design and Manufacture:API 602,API 600,BS1414,BS6364
Face to Face Dimension:ASME B16.10,EN558
Flange Connection Dimension:ASME B16.5
BW Connection Dimension:ASME B16.25
Pressure-Temperature Ratings:ASME B16.34
Test and Inspection:API 598,BS6364

Main Materials:LF2,LF3,F304,F316 ,LCB,LCC,LC3,CF8,CF8M.

FAQ

1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.

2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.

3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.

4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.

5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.

6. What's your terms of payment?
A: T/T, L/C , Alibaba Trade Assurance available, full protection for your orders.

7.Do you accept custom design on size?
A: Yes, if the size is reasonable
