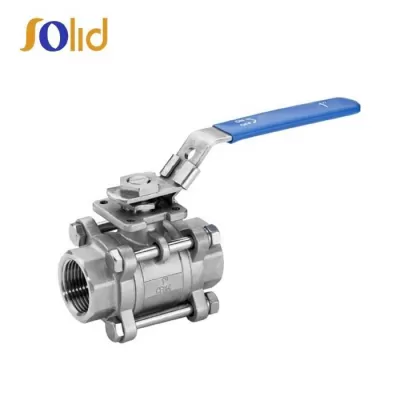

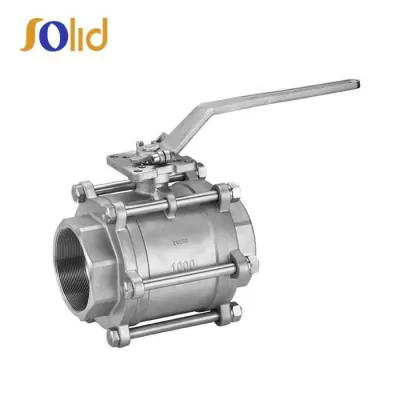

Stainless Steel 3PC Full Port Ball Valve

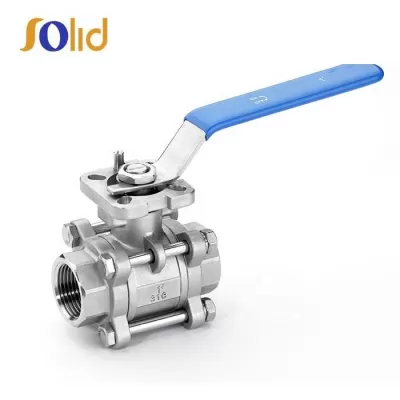

Stainless Steel 3PC Ball Valve

The Stainless Steel 3PC Ball Valve, also known as a 3 Piece Stainless Steel Ball Valve, is designed for reliable flow control and easy maintenance in industrial pipeline systems. Its three-piece body structure allows convenient disassembly for cleaning or seal replacement without removing the valve from the pipeline.

Manufactured from high-grade SS304 / SS316 stainless steel, this 3PC ball valve provides excellent corrosion resistance, high pressure tolerance, and long service life, making it ideal for demanding industrial applications.

3 Piece Full Bore 1000 PSI Stainless Steel Threaded / Socket Weld End Ball Valve Description:

Stainless Steel Full Bore 3PC Ball Valve
Materials: CF8, CF8M
Dimension: 1/4"-4"
Working pressure: 1000WOG, 2000WOG
Temperature range: -40 °C~ 300  °C
End types: Threaded(NPT, BSP, BSPT, DIN2999)

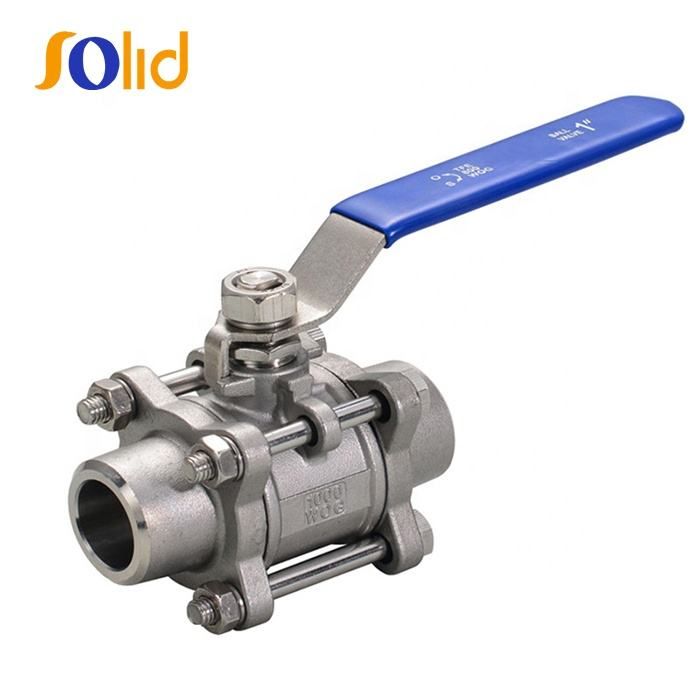

Female threaded or socket welded end

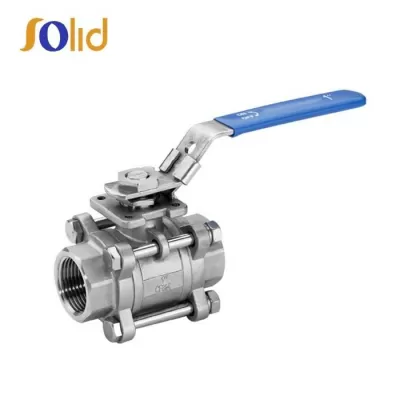

Handle with locking device

3PC Ball Valve Screw Ends 1000WOG

Investment Castings For Body and Cap
Internal Entry Blow-off Proof Stem
Pressure Rating: 1000PSI (PN63)
Threaded Ends: ANSI B2.1, BS 21, DIN259/2999
Material: CF8, CF8M, SF3M, WCB
Pressure Test: API598
Size: 1/4"- 4"

Body: Carbon Steel WCB, Stainless steel CF8, CF8M;
Cap: Carbon Steel WCB, Stainless steel CF8, CF8M;
Stem: Stainless Steel AISI304/316
Ball: Stainless steel CF8, CF8M;
Ball seat: PTFE;
Stem Packing: PTFE
Gland nut: Carbon Steel WCB, Stainless steel CF8, CF8M;
Bolt, Nut, Washer: Stainless steel AISI304/316;
Handle: Stainless steel AISI304;
Handle Sleeve: Plastic;
Lock Device: Stainless steel AISI304

Key Features of 3 Piece Stainless Steel Ball Valve

• Three-piece body design for easy maintenance and repair

• Full port (full bore) design ensures minimal pressure loss

• Available in SS304, SS316, CF8, CF8M materials

• Excellent resistance to corrosion and high temperature

• PTFE seated for tight sealing performance

• Suitable for high-pressure industrial environments

Stainless Steel 3PC Ball Valve Specifications

• Valve Type: 3 Piece Full Port Ball Valve

• Size Range: DN8 – DN100 (1/4" – 4")

• Material: SS304 / SS316 / CF8M

• Seat Material: PTFE / RPTFE

• Pressure Rating: 1000 PSI / 2000 WOG

• Connection Types: Threaded (NPT/BSP), Socket Weld, Flanged

• Design Standards: ANSI, DIN, ISO

• Testing Standard: API 598

Available Sizes:

1/4" Stainless Steel 3PC Ball Valve: Compact size ideal for smaller systems or applications requiring precise flow control.

4" Stainless Steel 3PC Ball Valve: Larger size for industrial-scale applications, providing high-flow capabilities and robust performance.

Applications of Stainless Steel 3PC Ball Valves

The stainless steel 3 piece ball valve is widely used in various industrial systems where durability and precise flow control are required.

• Water treatment and wastewater systems

• Chemical and petrochemical processing

• HVAC and industrial pipeline control

• Food and beverage processing

• Pharmaceutical and sanitary applications




Advantages of Stainless Steel 3PC Ball Valves

Compared with one-piece or two-piece valves, the 3PC stainless steel ball valve offers superior flexibility and lower maintenance costs. The valve body can be easily disassembled, allowing fast inspection and replacement of internal components while keeping pipeline connections intact.

As a professional stainless steel ball valve manufacturer and supplier,  Solid valve provides stable quality control, competitive factory pricing, and customized solutions for global B2B customers.

FAQ – Stainless Steel 3 Piece Ball Valve

What is a stainless steel 3PC ball valve?

A stainless steel 3PC ball valve is a ball valve composed of three main body sections, allowing easy maintenance and internal part replacement without removing the valve from the pipeline.

What is the difference between full port and reduced port ball valves?

A full port ball valve has a bore size equal to the pipe diameter, providing minimal flow resistance, while a reduced port valve has a smaller bore size.

Which material should I choose: SS304 or SS316?

SS304 is suitable for most general industrial applications, while SS316 stainless steel offers better corrosion resistance, especially for chemical or marine environments.

Contact Stainless Steel Ball Valve Manufacturer

Looking for a reliable stainless steel 3PC ball valve supplier?  Contact us today to get detailed specifications, pricing, and technical support for your project.

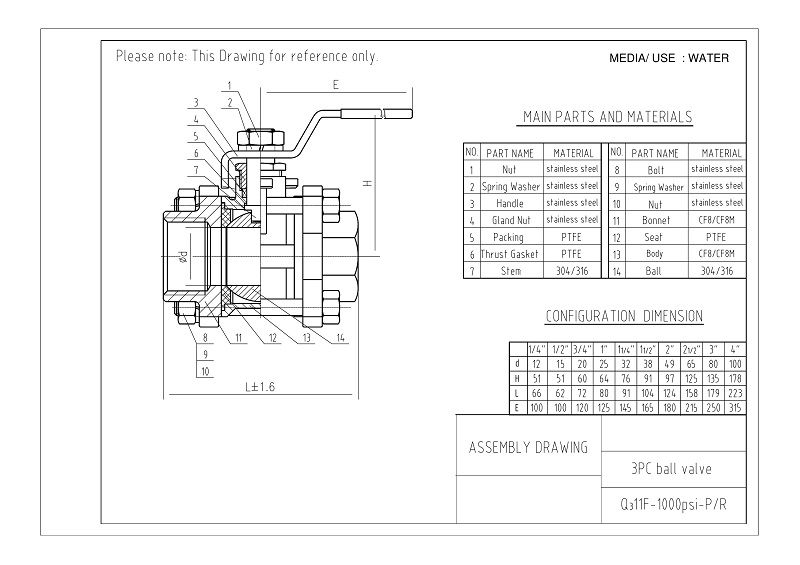

3 Piece Full Bore 1000 PSI Stainless Steel Threaded / Socket Weld End Ball Valve Drawing
