Introducing our Stainless Steel 2PC Ball Valve, a reliable and durable valve option for various industrial applications. Made from high-quality stainless steel, this valve is designed to withstand high pressure and temperature...
Introducing our Stainless Steel 2PC Ball Valve, a reliable and durable valve option for various industrial applications. Made from high-quality stainless steel, this valve is designed to withstand high pressure and temperature, making it ideal for use in demanding environments. The 2PC design allows for easy installation and maintenance, ensuring efficient operation and long-lasting performance. With its precision engineering and leak-proof design, this ball valve is a versatile solution for controlling flow in pipelines, fluid systems, and more. Trust in the quality and reliability of our Stainless Steel 2PC Ball Valve for your next project.

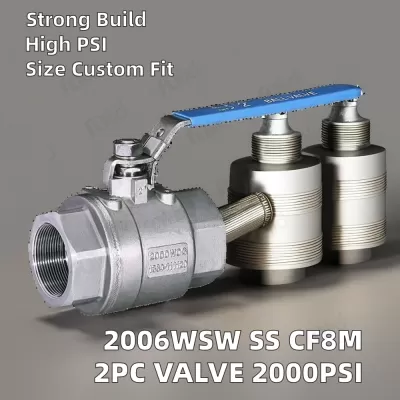

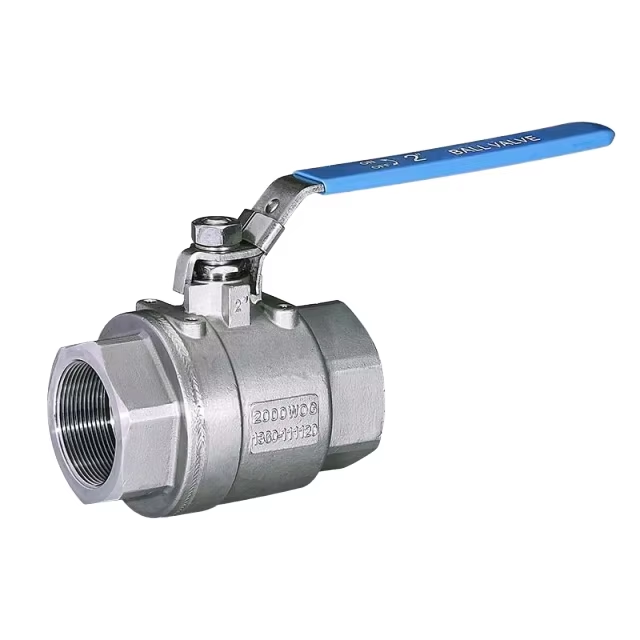

Stainless Steel Full Bore 2PC Ball Valve
Materials: CF8, CF8M
Dimension: 1/4"-4"
Working pressure: 1000WOG, 2000WOG
Temperature range: -40 °C~ 300 °C
End types: Threaded(NPT, BSP, BSPT, DIN2999)
Handle with locking device

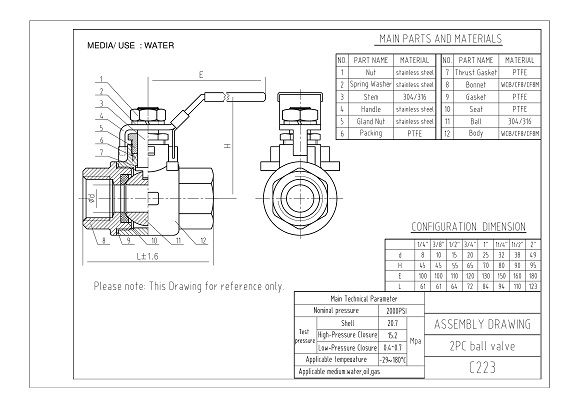

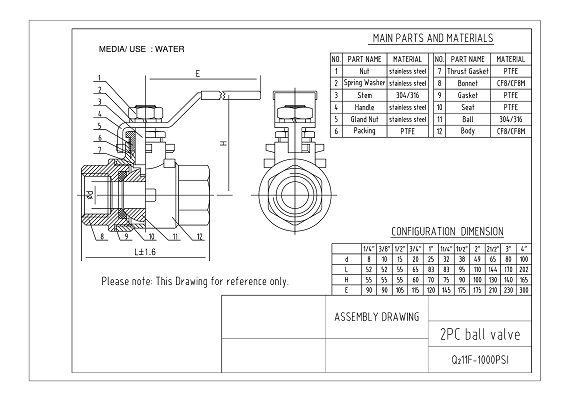

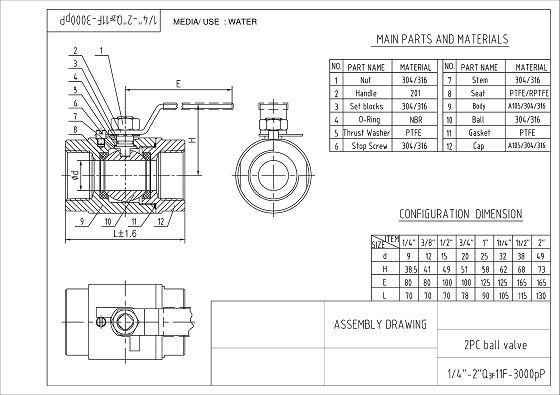

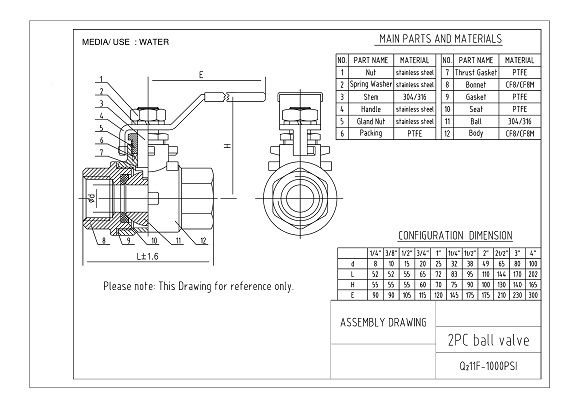

Main Parts and Materials
1 | Cap | CF8/CF8M | 7 | Stem | SS316/SS304 |
| 2 | Gasket | PTFE | 8 | Packing | PTFE |
| 3 | Seat | PTFE | 9 | Gland | SS304/SS |
| 4 | Ball | SS316/SS304/SS | 10 | Handle | SS201 |
| 5 | Body | CF8/CF8M | 11 | Spring Washer | SS304/SS |
| 6 | Thrust Washer | PTFE | 12 | Stem Nut | SS304/SS |
FAQ
1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.
2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.
6. What's your terms of payment?
A: T/T, L/C , Alibaba Trade Assurance available, full protection for your orders.
7.Do you accept custom design on size?
A: Yes, if the size is reasonable
