Materials: CF8, CF8M
Dimension: 1/4"-4"
Working pressure: 1000WOG, 2000WOG
Temperature range: -40 °C~ 300 °C
End types: Threaded(NPT, BSP, BSPT, DIN2999)

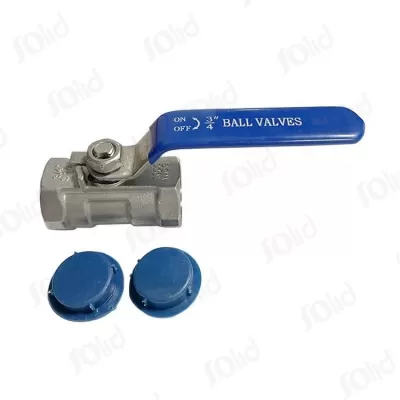

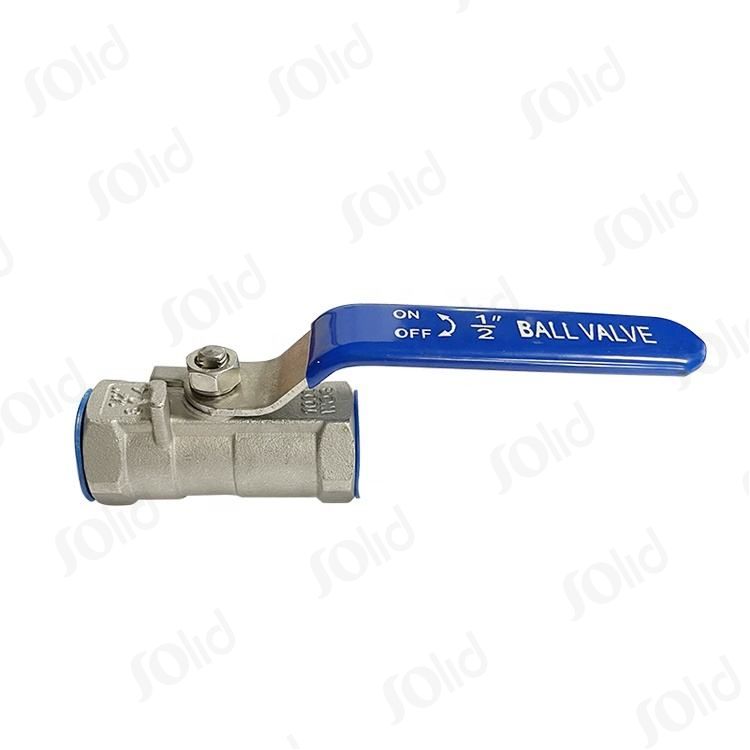

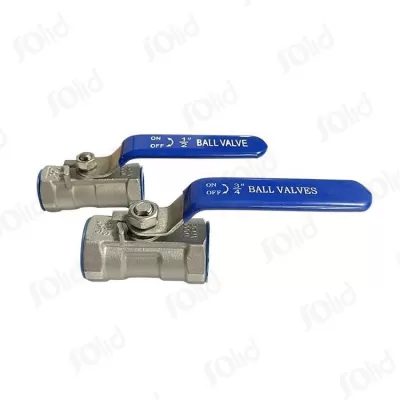

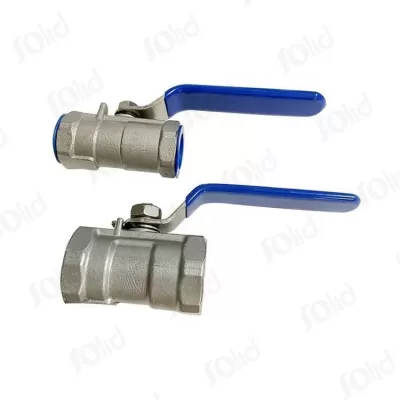

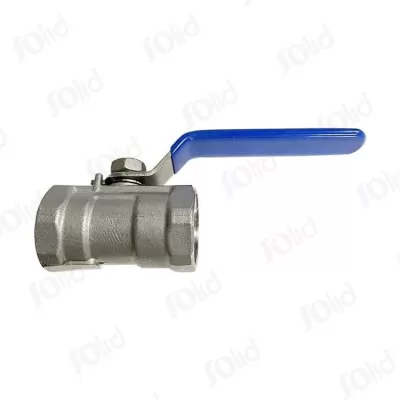

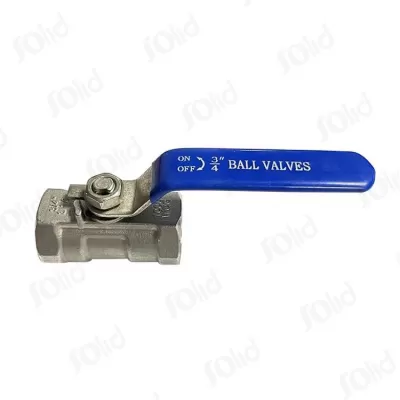

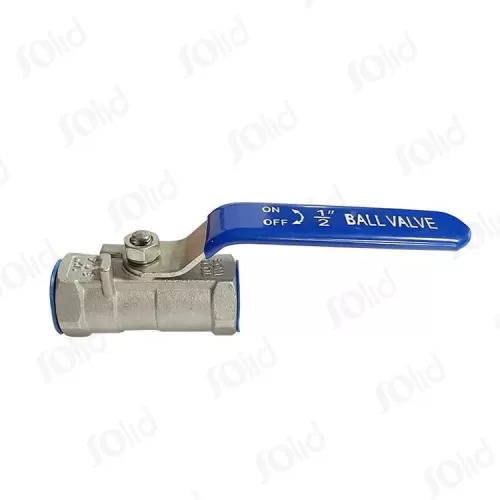

1 piece uni-body ball valve by solid valve is designed for process flow control in general service up to 2000 PSI and working temperature at the range of -40 °C~ 300 °C. Floating ball design ensures tight closure when valve is at closed position as upstream pressure pushed ball towards valve seat to provide no leakage internally. 1 piece body design has a reduced port, also known as standard port, which the reduce flow size down by one size.
Materials: CF8, CF8M
Dimension: 1/4"-4"
Working pressure: 1000WOG, 2000WOG
Temperature range: -40 °C~ 300 °C
End types: Threaded(NPT, BSP, BSPT, DIN2999)
| Specification | |
| Nominal Pressure | 1.6-6.4MPa |
| Working Temperature | -20~232ºC~350ºC |
| Applicable Medium | Water, oil, gas and some corrosive liquid (W.O.G) |
| Screw type | G·NPT.BSPT.BSP.DIN259/2999 |
| Application | Applies to PN1.0 ~ 4.0 MPa, working temperature - 29 ~ 180 ºC (seal for enhanced ptfe) or - 29 ~ 300 ºC (seal for para polystyrene) of various pipelines, used to truncate or on line in the medium. |
Perfect for a wide range of industries, including water treatment, chemicals, HVAC, and food processing, the Stainless Steel 1PC Ball Valve ensures reliable flow control in even the most demanding conditions. Its high-pressure rating and durable construction make it ideal for both residential and industrial piping systems.
For more information or to request a quote, contact us today for top-quality Stainless Steel 1PC Ball Valves!

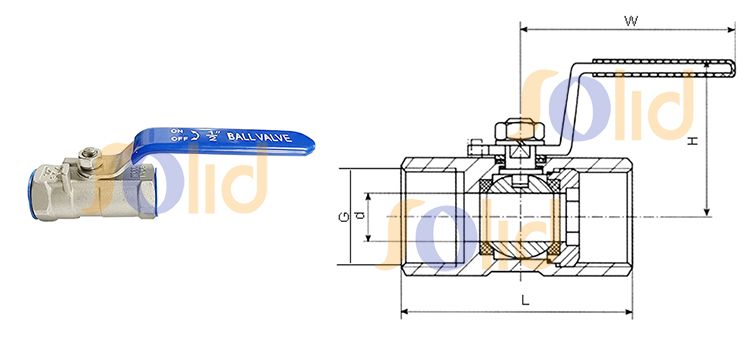

| Size and Weight | |||||
| Nominal Diameter | G | Size(mm) | |||
| d | L | W | H | ||
| 6 | 1/4" | 8 | 60 | 110 | 56 |
| 10 | 3/8" | 18 | 60 | 110 | 58 |
| 15 | 1/2" | 10.5 | 60 | 110 | 58 |
| 20 | 3/4" | 13 | 67.5 | 110 | 62 |
| 25 | 1" | 17 | 73 | 110 | 68 |
| 32 | 1 1/4" | 22 | 90 | 150 | 75 |
| 40 | 1 1/2" | 25 | 97.5 | 150 | 83 |
| 50 | 2" | 32 | 112 | 150 | 90 |
| 65 | 2 1/2" | 40 | 132 | 180 | 95 |
| 80 | 3" | 50 | 156 | 220 | 100 |
| 100 | 4" | 65 | 196 | 250 | 115 |
