Industrial Ball Valves Buying Guide

When selecting industrial ball valves, making the right decision can significantly impact your system’s performance, reliability, and long-term efficiency. Whether you're purchasing for manufacturing, chemical processing, oil & gas, or water treatment, understanding the key considerations is essential. This article provides a comprehensive guide to help you choose the most suitable ball valve, ensuring your investment delivers optimal value and performance.

What Is an Industrial Ball Valve?

Industrial ball valves are mechanical devices designed to control the flow of liquids or gases in a pipeline system. These valves operate by rotating a ball with a hole through its center to either allow or block flow. Ball valves are favored in industrial settings due to their durability, tight sealing capability, and simple operation.

They come in various types such as full-port, reduced-port, and V-port ball valves, each offering unique benefits based on your application. The choice depends on factors such as pressure rating, flow requirements, and material compatibility.

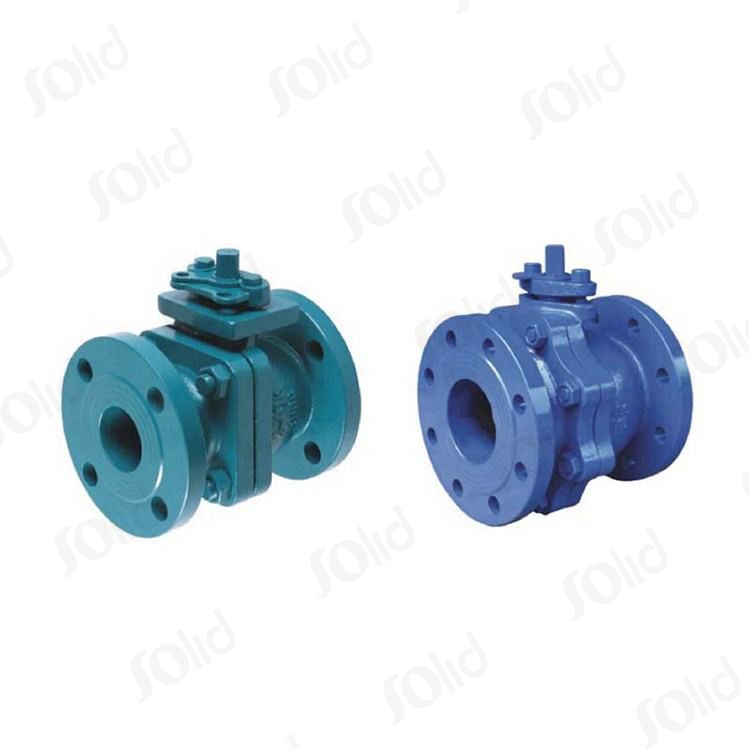

Ductile Iron Ball Valve

What Are the Key Types of Ball Valves?

Understanding the types of industrial ball valves helps you match the right model to your system's needs:

1. Full Port Ball Valve: Offers minimal flow restriction, ideal for applications requiring maximum flow capacity.

2. Reduced Port Ball Valve: Smaller opening reduces flow slightly but is cost-effective and suitable for many systems.

3. V-Port Ball Valve: Designed for precise flow control and commonly used in throttling applications.

4. Multi-Port Ball Valve: Allows fluid direction to multiple paths, ideal for mixing or diverting flow.

5. Trunnion-Mounted Ball Valve: Best for high-pressure applications, offering extra support to reduce torque.

What Questions Should You Ask Before Choosing?

Asking the right questions ensures that your industrial ball valve selection aligns with your operational goals. Consider the following:

1. What is the operating pressure and temperature range?

Ball valves must be rated for the maximum pressure and temperature they will encounter. Choosing a valve outside these parameters can result in system failure or safety hazards.

2. What media will flow through the valve?

Corrosive fluids, gases, and slurries require valves made from specific materials such as stainless steel or PTFE to prevent degradation or leakage.

3. Is tight shut-off required?

If your application demands zero leakage, select a valve with bubble-tight shutoff capability, typically offered by high-quality soft-seated ball valves.

4. Will the valve be automated?

Consider whether the valve will be manually operated or automated with an electric or pneumatic actuator. Automation is critical for remote or complex systems.

5. What are the maintenance and replacement requirements?

Choose valves with easy maintenance access and readily available replacement parts to reduce downtime and costs.

Materials Matter: What to Choose?

Material selection impacts the valve’s durability and compatibility with your system. Common materials include:

Stainless Steel: Ideal for high-pressure, high-temperature, or corrosive environments.

Brass: Cost-effective and suitable for non-corrosive fluids, typically used in HVAC and water systems.

PVC or CPVC: Lightweight, corrosion-resistant, and suitable for low-pressure applications with chemicals.

Carbon Steel: Best for high-pressure steam or gas systems where cost and strength are key.

Installation and Operation Tips

Proper installation and operation ensure long-term reliability:

Ensure that the pipeline is free of debris before installation. Use appropriate torque when tightening bolts to avoid damage. If automation is applied, make sure the actuator is calibrated correctly to avoid excessive wear.

Regular maintenance, such as lubricating the valve stem and inspecting seals, will extend the lifespan of the valve and maintain performance.

Q&A: Common Questions Answered

Q1: Can industrial ball valves handle high-pressure steam?

A: Yes, but only certain materials like carbon steel or stainless steel ball valves are rated for high-pressure steam. Always check the valve's pressure-temperature chart.

Q2: How long do ball valves typically last?

A: With proper maintenance, industrial ball valves can last over 10 years, depending on usage and environmental factors.

Q3: What causes a ball valve to fail?

A: Common reasons include corrosion, wear of the seats or seals, improper material selection, and installation errors.

Q4: Is it better to use a manual or automated ball valve?

A: It depends on the application. Manual valves are simple and cost-effective, while automated valves are ideal for complex or remote-controlled systems.

Final Considerations Before Purchase

Making the right industrial ball valve choice is about balancing cost, performance, and reliability. Always work with a trusted manufacturer or distributor who offers detailed technical support and testing certifications. Review all operational requirements thoroughly and never compromise on quality to avoid future system failures.

Ask for datasheets, installation guides, and warranty details. A good supplier should provide not just products, but also guidance and post-sale support.

Conclusion: Make the Right Choice with Confidence

Choosing the correct industrial ball valve can make or break your system’s efficiency. By asking the right questions and understanding your application, you’ll ensure long-term performance, safety, and value. Whether you're managing a large industrial facility or a custom pipeline solution, the right valve will help optimize flow control, reduce downtime, and increase profitability.
