How To Test Your Gate Valve?

Gate valves, also known as sluice valves, are widely used linear valves designed to start or stop liquid flow within a pipeline. They allow operators to isolate a section of the system when required, and the flow can move in either direction.

These valves are commonly applied in refineries and petrochemical plants where pressure is relatively low. However, many users lack the proper knowledge of gate valve maintenance, assembly, and installation, which often leads to avoidable issues.

This article provides a comprehensive guide to common gate valve problems, easy repair methods, seat replacement tips, and troubleshooting practices.

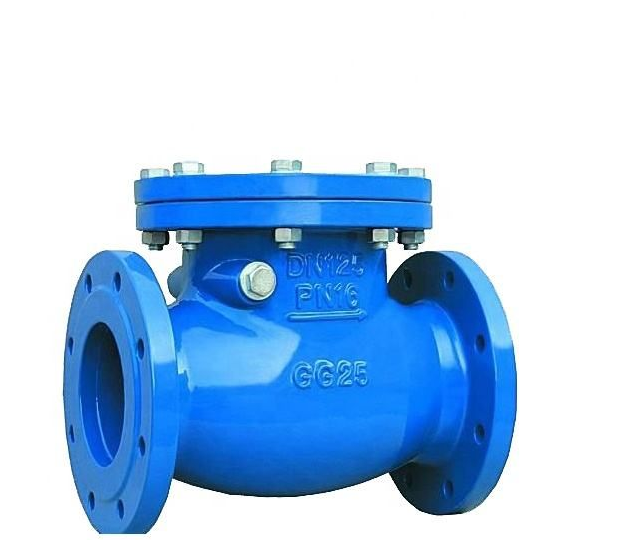

DN200 Ductile Iron Swing Type Check Valve PN25

How to Test a Gate Valve?

Before testing, it is important to recognize the critical role valves play across industries. They must operate precisely to maintain the correct pressure and prevent leaks.

Failures in high-pressure systems caused by leaks or poor pressure control can lead to dangerous accidents. Therefore, valve testing is essential to ensure safe and reliable performance. Testing helps identify conditions such as friction, cavitation, erosion, noise, and restricted flow.

Below are two practical methods for testing gate valves:

1. Middle-Pressure Test

Open the gate to raise pressure to the specified value.

Close the gate, then inspect both ends for leakage.

Alternatively, insert the test medium directly into the cover plug and check the seals.

Note: This method is not suitable for gate valves with diameters smaller than DN32mm.

2. Blind Plate Test

Open the ram and raise pressure to the test value.

Close the gate and remove the blind plate on one side to check for leaks.

Rotate the valve and repeat until the test is passed.

3. Back Seat Test

For valves with a backseat element, the test is conducted with the packing gland loosened or removed, following standard procedures.

Common Gate Valve Failures and Solutions

1. Leakage Between Valve and Pipeline Connection

Cause: Deposits or misaligned seals in the valve gland.

Solution: Tighten bolts and nuts, inspect gaskets and flange surfaces for defects, and repair or replace as necessary. Ensure surfaces are free of pits, cracks, or debris.

2. Hard-to-Turn Handwheel

Causes: Bent stem, damaged threads, lack of lubrication, improper material selection, or rust due to poor protection.

Solutions:

Operate carefully without excessive force.

Lubricate regularly.

Straighten or replace damaged stem nuts.

Protect outdoor valves from dust, sand, and moisture.

Use copper stem nuts instead of the same material as the stem.

3. Bonnet Leakage

Causes: Casting defects, frost damage, cracks, or impact damage.

Solutions: Check seal fittings and grooves, replace defective seals, and reassemble correctly. Ensure all surfaces are smooth and within tolerance.

4. Valve Seat and Wedge Leakage

Causes: Thermal stress or friction between the stem and guide.

Solutions: Grind or replace sealing surfaces, check spring elasticity, and remove debris during installation. Always use proper tools for installation.

5. Valve Fails to Close

Cause: Deposits of rust and dirt in the mechanism.

Solution: Clean the valve thoroughly or replace it entirely.

6. Gate Valve Breakage

Causes: Weak valve body, excessive pressure, or shallow spindle threads.

Solution: Shut off water with a curb box key, then remove and replace the broken valve.

7. Leakage at the Packing Filler

Causes: Debris buildup, stuck components, high water pressure, or misalignment.

Solutions: Compress packing evenly, add more packing if necessary, or replace old packing material.
