How to Install the Wafer Type Manual Butterfly Valve

Installing a Wafer Type Manual Butterfly Valve is a straightforward process, but it requires careful attention to detail to ensure proper functioning and prevent leaks. This guide provides step-by-step instructions on how to correctly install the valve, including the tools you'll need and essential tips for a successful installation.

Tools and Materials Required

• Wafer Type Manual Butterfly Valve

• Flange Gaskets

• Bolts and Nuts

• Wrench or Socket Set

• Torque Wrench

• Lubricant (if necessary for seals)

• Pipe Flanges (if not already installed)

• Cleaning Materials (e.g., rags or wipes)

Step-by-Step Installation Process

1. Preparation

Before installing the Wafer Type Manual Butterfly Valve, ensure that the pipe system is clean and free of any debris or contaminants. This ensures a tight seal and prevents any damage to the valve during installation.

• Inspect the valve for any signs of damage during shipment. Check the valve disc and seat for any visible defects.

• Ensure the pipe flanges are properly aligned and clean. The flange faces should be smooth and free from any rust or debris.

• If the valve is new, make sure to lubricate the valve's sealing surfaces (if specified by the manufacturer) to avoid damage during installation.

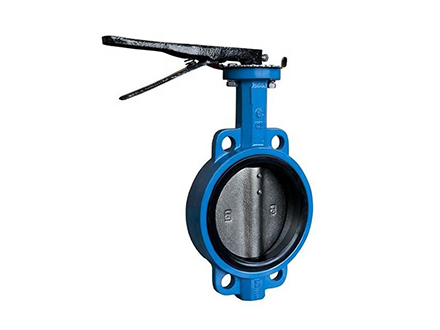

Wafer Type Manual Butterfly Valve

2. Position the Valve

Place the wafer type butterfly valve between the two pipe flanges. The valve body should be centered between the flanges, and the valve disc should be in the closed position before installation. Be sure to align the bolt holes of the valve with the bolt holes of the flanges on both sides of the valve.

• Check the orientation of the valve to ensure the flow direction matches the valve's design (typically indicated by an arrow on the valve body).

• Ensure the valve is installed in the correct direction, as the disc will only function properly when positioned according to the flow direction.

3. Install the Flange Gaskets

Place the flange gaskets onto the pipe flanges. Ensure that the gaskets are aligned properly with the flange holes to create a tight seal when the valve is installed.

• Use high-quality, compatible gaskets recommended by the manufacturer to prevent leaks.

• Ensure there are no wrinkles or folds in the gaskets that could cause improper sealing.

4. Fasten the Bolts

Insert the bolts through the flange holes and the valve's bolt holes, ensuring that the bolts are of the correct size and material as specified by the manufacturer. Tighten the bolts by hand to hold the valve in place temporarily.

• Use a wrench or socket set to tighten the bolts evenly on both sides of the valve.

• Do not overtighten the bolts at this stage—just tighten enough to hold the valve securely in place.

5. Tighten the Bolts Using a Torque Wrench

Once the bolts are in place, use a torque wrench to tighten the bolts to the recommended torque value specified by the valve manufacturer. This step is essential to ensure even pressure on the gasket and prevent leaks.

• Start tightening the bolts in a crisscross pattern to evenly distribute the pressure across the valve and the gaskets.

• Follow the manufacturer’s recommended torque specifications closely to avoid over-tightening or under-tightening.

6. Check for Leaks

Once the valve is installed, perform a leak test to ensure that the valve is sealed properly and functioning correctly.

• Turn on the system and check all connections for leaks. If any leaks are detected, tighten the bolts further or replace the gaskets if necessary.

• Ensure the valve disc opens and closes smoothly when operated manually.

7. Final Inspection

After the installation is complete, perform a final inspection to verify that the valve is securely installed and operating as expected.

• Ensure the valve is fully seated in the pipeline and that all connections are tight.

• Check for any visible signs of damage or wear during operation.

Conclusion

Proper installation of the Wafer Type Manual Butterfly Valve ensures long-term performance and reliability in your system. By following the steps outlined in this guide, you can install the valve correctly, ensuring a leak-free and efficient operation. Always follow the manufacturer's guidelines for the specific valve model you are installing, and consult an expert if needed for complex installations.
