Forging vs Casting Steel Valves: Which One to Choose?
Steel valves are essential components in a variety of industrial applications, including oil and gas, water treatment, and manufacturing. The material and method used to create these valves significantly impact their performance, durability, and cost-effectiveness. Two common manufacturing techniques for producing steel valves are forging and casting. Both methods have their advantages and disadvantages, and understanding these differences is crucial when selecting the right valve for your needs.
What is Forging?

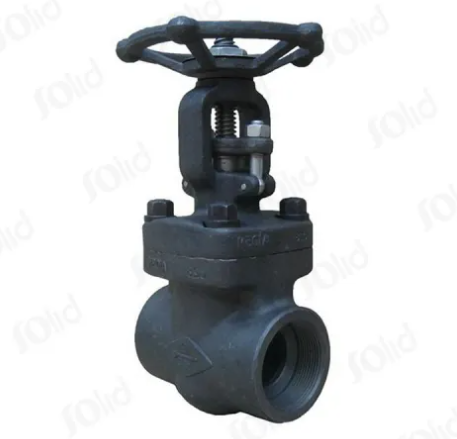

Forging is a manufacturing process in which metal is shaped by applying compressive forces. The steel is heated until it becomes malleable and then pressed or hammered into the desired shape. This process strengthens the material's grain structure, making the resulting valve much stronger and more resistant to stress, fatigue, and corrosion. Forged steel valves are typically used in high-pressure, high-temperature environments where reliability and strength are paramount.
Advantages of Forged Steel Valves
Strength and Durability: Forged steel valves are known for their superior strength, as the forging process creates a uniform grain structure that enhances the material's ability to withstand high pressures and temperatures.
Resistance to Fatigue: The forging process makes the material more resistant to fatigue, which means these valves can handle repeated stress and pressure cycles without failing.
Superior Leak Integrity: Forged valves often have better sealing properties, reducing the risk of leaks over time, especially in critical applications.
Improved Performance in Harsh Conditions: Forged steel valves perform better in extreme environments where other materials might fail, making them ideal for the oil and gas industry, nuclear power plants, and other demanding sectors.
What is Casting?

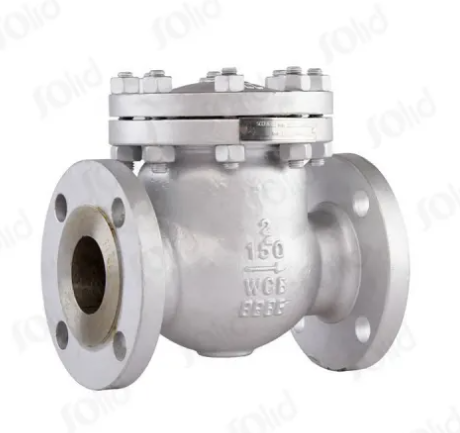

Casting is a manufacturing process where molten steel is poured into a mold and allowed to solidify. Once the steel cools, the mold is removed to reveal the finished valve. This process allows for greater design flexibility and the production of complex shapes. Cast steel valves are often used in industries where high-volume production is needed and where the valves do not face the extreme conditions that forged valves are designed to endure.
Advantages of Cast Steel Valves
Cost-Effective: Casting is generally a more cost-effective method for producing steel valves, especially in high volumes. The process requires less energy and labor compared to forging, resulting in lower production costs.
Design Flexibility: Casting allows for more complex shapes and designs, making it suitable for valves with intricate features or non-standard sizes.
Ability to Produce Larger Valves: Casting is ideal for producing larger valves as the size limitations associated with forging are less of a concern.
Choosing the Right Valve: Forged vs. Cast Steel
The decision to choose forged or cast steel valves depends on a number of factors, including the application's pressure, temperature, complexity, and cost requirements:
For High-Pressure or High-Temperature Applications: Forged steel valves are generally the better choice due to their superior strength, durability, and resistance to fatigue.
For Complex or Large Valve Designs: Cast steel valves may be preferable when intricate designs or large valve sizes are needed, as casting allows for greater flexibility in shaping.
For Cost-Effective Solutions: If budget constraints are a concern, cast steel valves offer a more affordable option, particularly for applications that don’t face extreme conditions.
Conclusion
Both forged and cast steel valves have distinct advantages and are suitable for different applications. Forged steel valves are the preferred choice in high-pressure, high-temperature, and critical service applications due to their superior strength, fatigue resistance, and leak integrity. On the other hand, cast steel valves are more cost-effective and ideal for less demanding environments, complex designs, and larger sizes. Understanding the key differences between these two manufacturing methods will help you make an informed decision based on your operational needs, ensuring the right valve choice for performance and longevity.
