A Complete Guide to Understand Industrial Butterfly Valves

Butterfly valves are widely used in industrial applications thanks to their efficiency, compact design, and cost-effectiveness. They are essential for isolating and regulating system flow in industries such as water distribution, HVAC, chemical processing, and more. However, choosing the right butterfly valve can be challenging given the wide range of options based on material, size, actuation, and construction.

This guide covers the most common types of butterfly valves, their technical specifications, and important maintenance considerations. You will also learn about classifications based on actuation methods and materials, helping you select the best valve for your system requirements.

What is a Butterfly Valve?

A butterfly valve is a quarter-turn valve designed to regulate or stop the flow of liquids, gases, or slurries within a pipeline. It uses a rotating disc, the closure element, that turns around a central axis. When the disc is aligned with the flow, the valve is open; when it is perpendicular, the valve closes and blocks the passage.

Basic Working Principle

The working principle is simple: the rotation of the disc controls the flow. At parallel orientation, maximum flow passes through the system. At perpendicular orientation, the valve closes completely. By adjusting the disc at intermediate angles, the valve can regulate flow, making it versatile for different operational needs.

Components of a Butterfly Valve

A typical butterfly valve has five main components:

• Disc – regulates the flow of fluid by rotating.

• Seat – acts as a seal, ensuring leakproof closure.

• Body – provides the housing and connects the valve to the pipeline.

• Stem – links the actuator to the disc and transfers motion.

• Actuator – can be manual, pneumatic, or electric, controlling the disc’s rotation.

Types of Butterfly Valves

Butterfly valves are categorized by design, actuation, and materials. Below are some of the most commonly used industrial types:

Wafer Butterfly Valve

Wafer butterfly valves are compact and lightweight, making them suitable for tight spaces. They are mounted between two flanges with bolts and typically use an elastomeric seat for sealing. They are ideal for medium pressures (up to 16 Bar) and are commonly used in HVAC systems, water treatment, and other low-pressure applications.

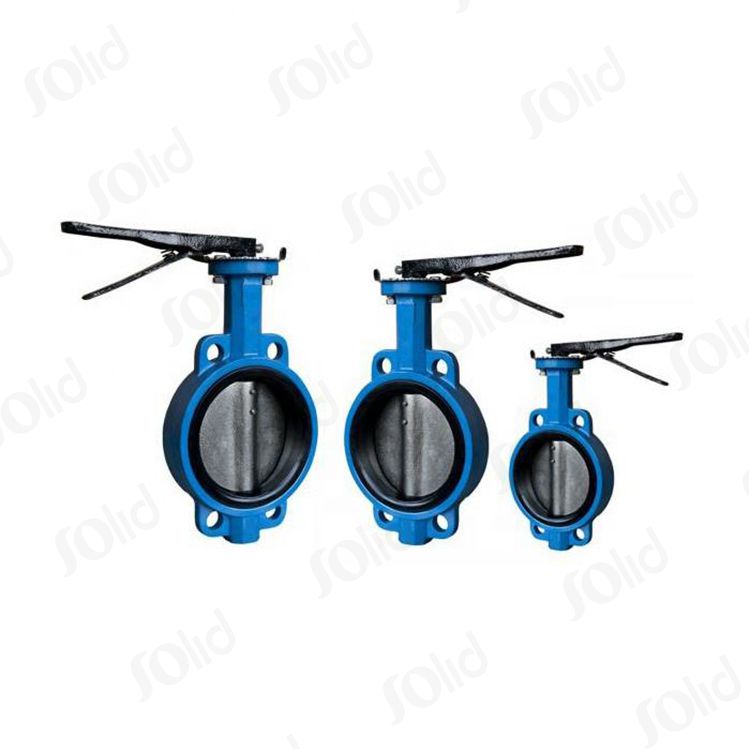

Wafer Type Butterfly Valve

Lugged Butterfly Valve

Lugged butterfly valves feature threaded inserts (“lugs”) that allow direct bolting to flanges. This design makes it possible to isolate one side of the pipeline for maintenance without disturbing the other. Constructed with ductile iron bodies, stainless-steel discs, and EPDM seats, lugged valves provide durability and leak-tight performance. They are especially suitable for systems requiring frequent inspection or partial isolation.

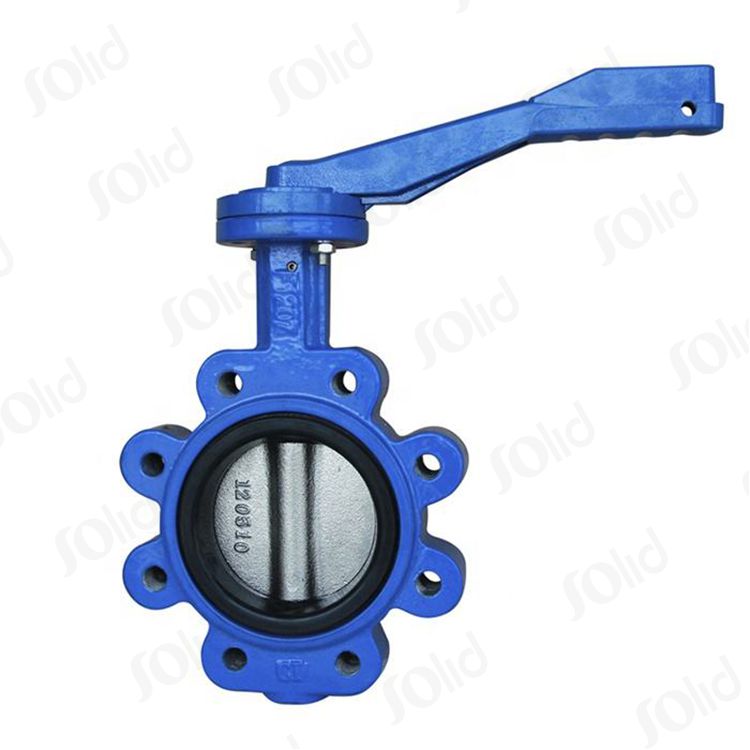

Lugged Butterfly Valve

Double Flanged Butterfly Valve

Double-flanged butterfly valves have flanges on both inlet and outlet ends, providing robust sealing and easier installation. They can handle higher pressures, up to ANSI 300–1000, and are widely used in demanding applications. With ductile iron bodies, epoxy coatings, and stainless-steel components, these valves offer excellent corrosion resistance and long-term reliability.

Material-Based Classification

Butterfly valves are also classified by the materials used in their construction:

• Stainless Steel – corrosion-resistant, ideal for aggressive media.

• Ductile Iron – economical and durable for water and gas applications.

• Carbon Steel – high strength, suitable for high-pressure environments.

• PVC / CPVC – lightweight and cost-effective for non-aggressive fluids.

Seats may be made of elastomers (flexibility in low-pressure settings), PTFE/EPDM (chemical and high-temperature resistance), or graphite (extreme temperature applications). Material selection depends on corrosion resistance, temperature tolerance, strength, and media compatibility.

Maintenance and Common Issues

Like all mechanical equipment, butterfly valves require maintenance. Common issues include wear on seats, stem leakage, and corrosion. Troubleshooting and preventive maintenance help extend the valve’s service life, minimize downtime, and reduce costs. Regular inspection of seals, actuators, and moving parts is recommended.

Conclusion

Butterfly valves are indispensable in industrial flow control systems due to their compact design, versatility, and cost-effectiveness. By understanding different types—wafer, lugged, double-flanged, zero-offset, double-offset, and triple-offset—you can select the most suitable option for your application. Choosing the right materials and maintaining valves properly ensures long-lasting performance and reliability.
