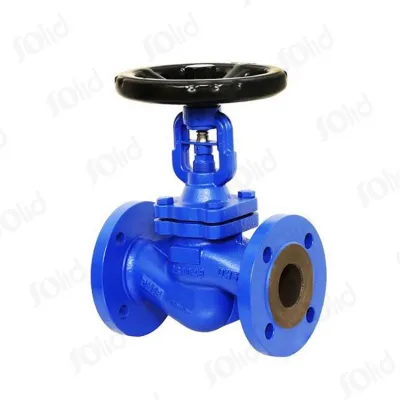

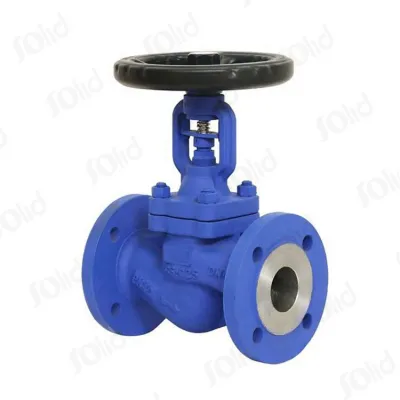

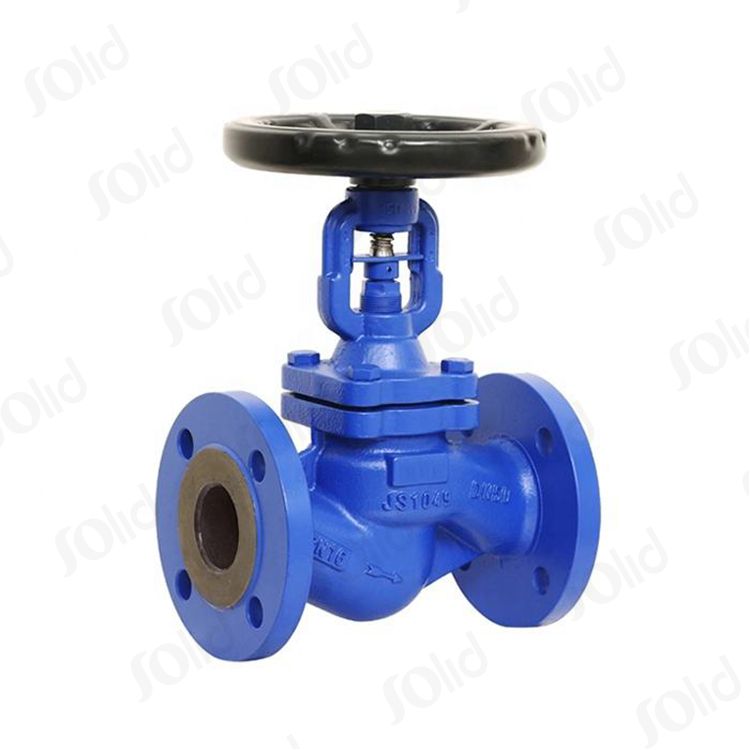

Ductile Iron Globe Valve

This is a manual flanged globe valve made of cast iron or ductile iron, ideal for fluid control in municipal and industrial applications. It features robust construction, reliable sealing, and wide international standard compatibility.

Product Features:

• Material Details:

• Body: Ductile iron GGG50 / GGG40 or cast iron

• Stem: Stainless steel

• Disc seat ring: Brass / Bronze / Stainless steel / Rubber (optional)

• Body seat ring: Brass / Bronze / Stainless steel / Rubber (optional)




• Connection Type:

• Flanged ends

• Flange drilling complies with BS 4504, DIN 2501, and ANSI B16.10 standards, suitable for PN10 and PN16 pressure classes.




• Structure:

• Globe valve type with vertical movement of the disc to cut off or regulate flow.

• Outside screw and yoke (OS&Y) design with rising stem for easy operation and visible open/close position.




• Sealing & Coating:

• Reliable sealing performance with multiple material options

• Internal and external surfaces coated with Fusion Bonded Epoxy or liquid painting, ensuring excellent corrosion resistance.




• Working Parameters:

• Pressure rating: PN10 / PN16

• Working temperature: –10°C to 120°C (depending on material selection)




• Standards Compliance:

• Designed and manufactured according to API, ANSI, DIN, ISO, and BS international standards, suitable for global projects.




• Applications:

• Widely used in municipal water supply, industrial pipelines, HVAC systems, water treatment, and petrochemical industries.




• Size Range:

• Available in sizes from DN15 to DN300, with larger sizes customizable upon request.




Packaging & Payment Terms:

• Packaging: Packed in plywood cases for safe international shipping.

• Payment Terms (options):

• 30% T/T in advance, 70% T/T before shipment after goods are ready

• Or 50% T/T in advance, 50% T/T against copy of B/L

Application

Hot oil system, steam system, hot and cold water system etc.

Advantage

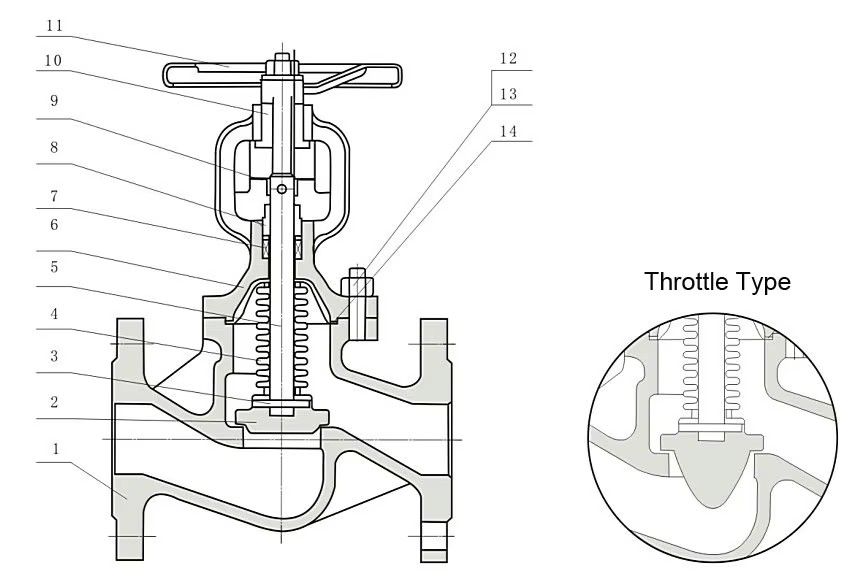

1.Bellow seal element. The key part of bellow sealed globe valves is mental bellow. It is the connection between cover and stem with automatic roll welding. The mental bellow can keep the stem part no leakage.

2.Benefit from the con and streamline shape design, the disc has a reliable seal and longer service life.

3.Double seal design(bellows+packing). Bellow and packing can protect against leakage and provide a excellent seal.

4.Grease nipple. It can direct lubricate the stem, nut and sleeve.

5.Ergonomic hand wheel. It provide longer service life and easier operation.

Technical specification

Design standard: DIN 3356

Face to face dimension: DIN 3202

Flanged ends: DIN 2543-2545

Test & inspection: DIN 3230
