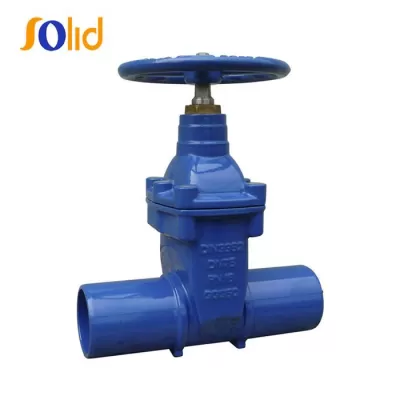

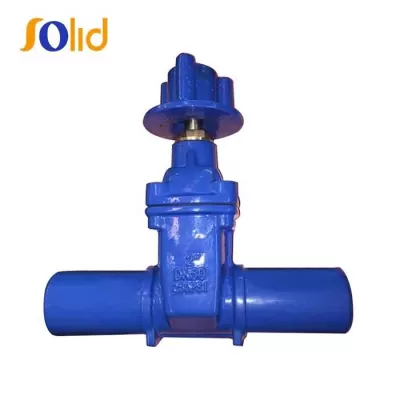

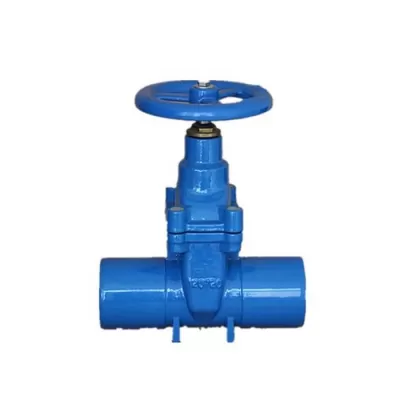

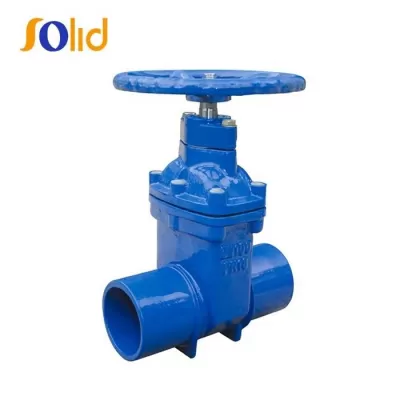

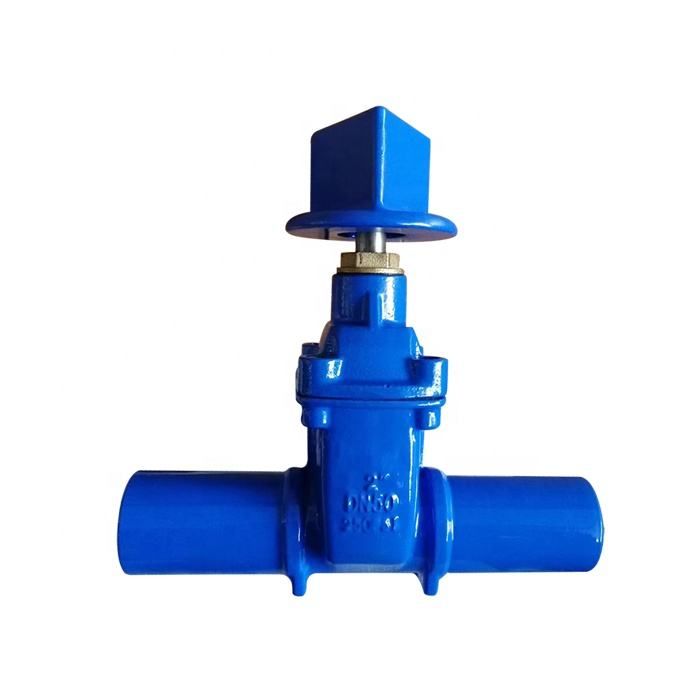

Spigot End Gate Valve

Introducing our Spigot End Gate Valve, a reliable and durable solution for controlling the flow of fluids in various industrial applications. Constructed from high-quality materials, our gate valve is designed to withstand high pressures and temperatures, making it ideal for use in demanding environments. The spigot end design allows for easy installation and maintenance, saving you time and effort.

Description:

Design Standard: AWWA

Each valve be tested according to test standard: AWWA C110

Work Temperature: 0-80°C

Working Pressure: 200/250 Psi

Size: DN50-DN300

Materials:

Body: Ductile Iron(ASTM A536 65-45-12)

Bonnet: Ductile Iron(ASTM A536 65-45-12)

Wedge: Ductile iron coated by NBR or EPDM

Stem: 2Cr13

Stem nut: Brass

Gland: Ductile iron or Brass

O ring: NBR

Gasket: NBR

Bonnet Bolts: Steel 8.8+Wax

Handwheel: Cast Iron(GG25) or Ductile iron(ASTM A536 65-45-12)

Standard:

Design: DIN3352, BS5163,SABS 664/665
Class: PN10 / 16
Face to face: DIN3352 F5 / SABS664
Socket ends: ISO4422, ISO4422.2
Testing: ISO5208
