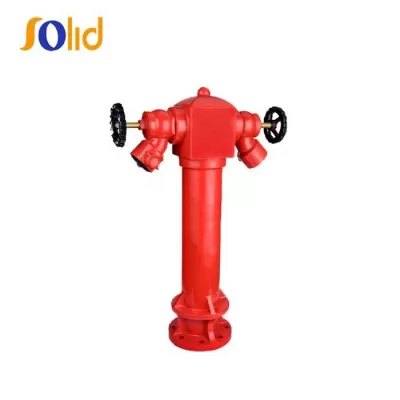

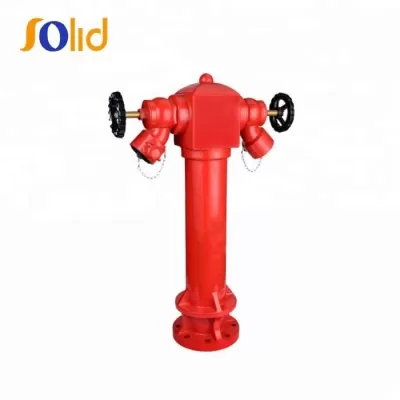

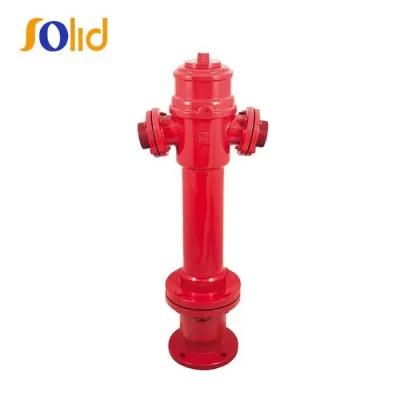

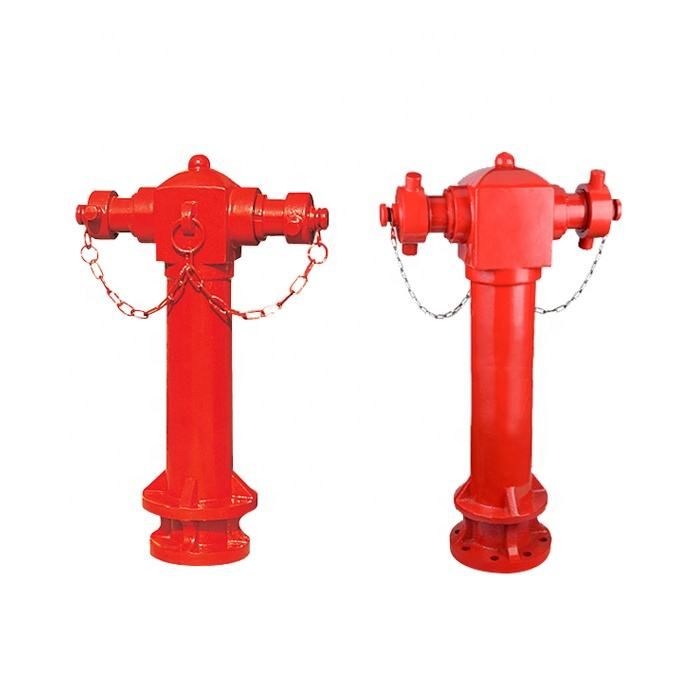

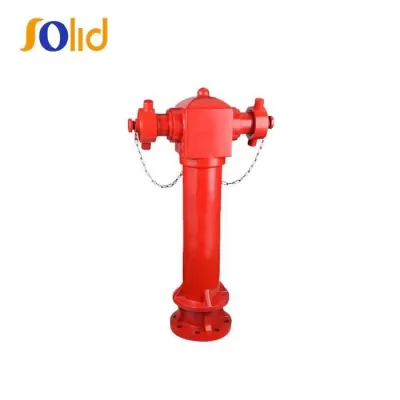

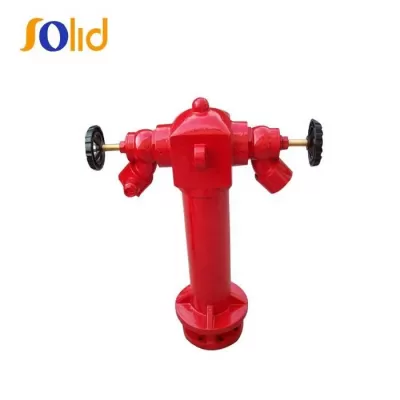

Pillar hydrant
Pillar Fire Hydrant is a connection point by which firefighters can get the supply of water for fire hose. It is a component installed in outdoor for fire protection. Raw materiral made from cast iron. Also can be matched with fire coupling, fire truck etc. Red color, easy for recognition and easy operation.
The ground type outdoor fire hydrant is designed for outdoor fire fighting equipment, installed in city water pipe net, the main water supply for fire department fire extinguishing facilities, applicable to the town, streets and factories and warehouses, organs, schools, hospitals and other places, easy to use, fast and efficient.
The ground type mainly by the bolt body, the body of the outdoor fire cock, bent pipe, screw, disc, interface components, such as compact structure, modelling beautiful, where the parts are painted bright red alkyd hereby, buried parts are painted black asphalt, suitable for high temperature place.
1. Size: DN 100, DN 150
2. Body Material: cast iron BS 1452,
3. Adaptor Material: brass or bronze
4. Coating: Internal and external with fusion bonded epoxy coating. or liquid painting
5. Color: blue color,black color,red color,gray color,etc Epoxy Coated.
6. Working pressure: 25bar (350PSI)
:

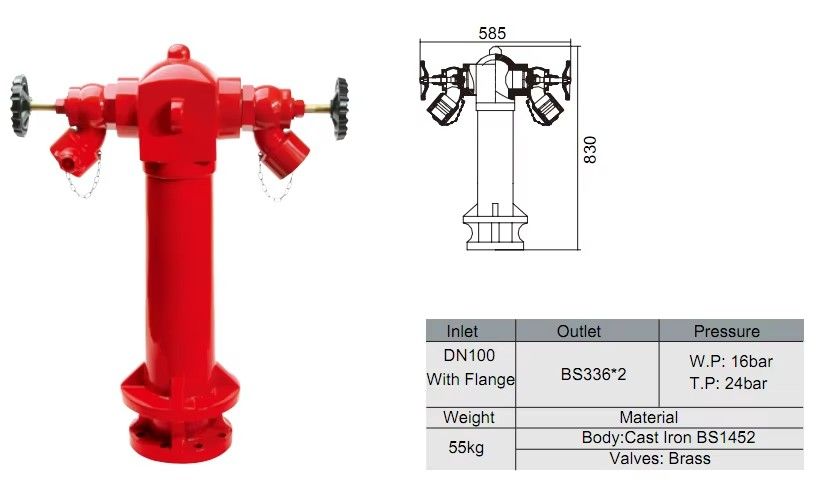

Technical parameters
| Model | Ordinary | Underground | |
| Type | 100/65-1.6 | 150/80-1.6 | 100/65-1.6 |
| Nominal Diameter(mm) | DN100 | DN150 | DN100 |
| Rod Opening Height(mm) | 50 | 55 | 50 |
| Nominal W.P.(Mpa) | 1.6 | ||
| Test Pressure(Mpa) | 2.4 | ||
| Body material: | Cast Iron to BS 1452 |
| Inlet : | 4" Table T BS 10 |
| Flange Outlet: | Copper Alloy 2x2.5" Control Valve with Female BS Inst. |
| Outlet Test pressure: | 30bar(435 psi) |
| Working pressure: | 20bar(290 psi) |
| Finishing: | Red Epoxy coated |
| Inlet Size | Outlet Size |
| 100MM | 2*2.5''BS337 |
| 100MM | 2*65MM |
