Fire safety is crucial for every living being, and it's no secret that fires can cause disastrous consequences if not dealt with in time. Ductile Iron Fire Hydrants are designed to offer robust and reliable fire protection against such calamities. It is a specially designed device that provides easy access to water, which is vital for extinguishing fires...

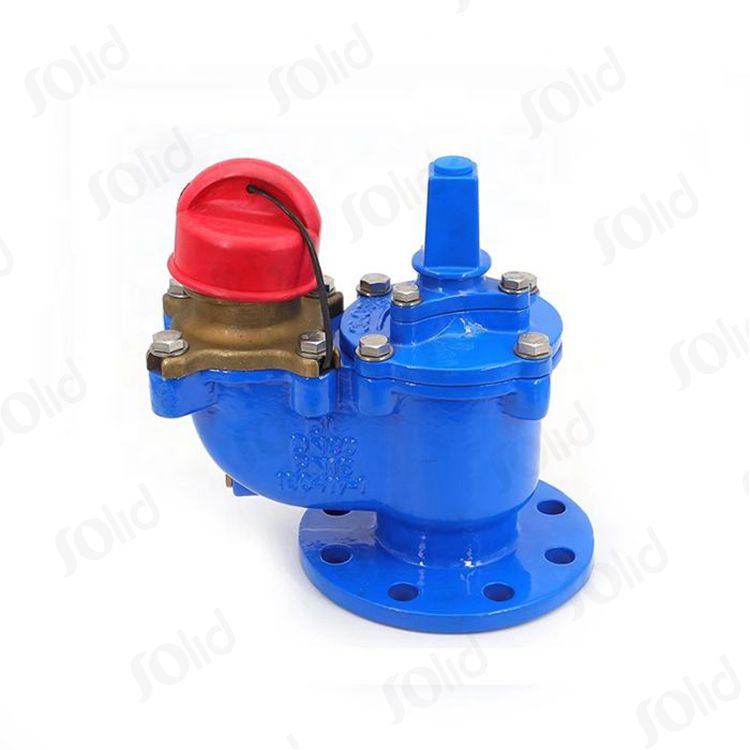

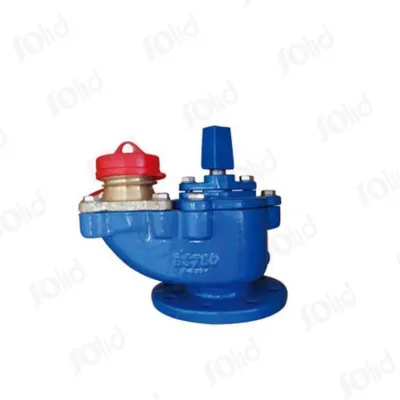

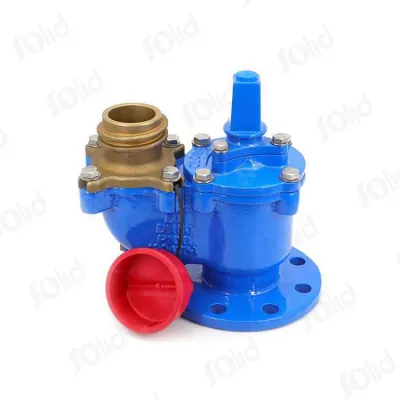

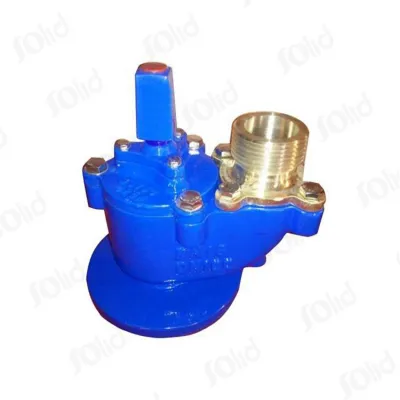

Ductile Iron Fire Hydrant - The Ultimate Fire Protection Solution
Standard: BS750
Material: Ductile iron GGG50/40 or cast iron, Bonnet: Cast iron/ Ductile iron
Coating: Internal and external with fusion bonded epoxy coating. or liquid painting
Stem: stainless steel
Stem nut: brass
Design standard:BS EN1074-6
Flange standard :BS EN1092-2 BS10 T/D,T/E
Inspection & testing:BS EN12266-1
Working pressure:16bar
working temperature:-20ºC to 100ºC
| Material | ductile iron/cast iron | |
| Standard | BS750 | |
| Size | DN80mm | |
| Type | underground fire hydrant | |
| Main parts & material | part material | body/disc/bonnet DI/CI |
| stem SS420 | stem nut/holding ring/sealing nut/ brass | |
| disc ring EPDM | o-ring/dust ring/bonnet gasket NBR | |
| End flange | BS4504/EN1092 | |
| Pressure | PN16 | |
Product Dimensions:

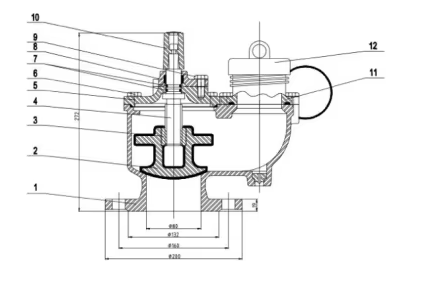

Material List
| Item | Part | Material |
| 1 | Body | Ductile iron |
| 2 | Gate | Ductile iron/EPDM |
| 3 | Stem Nut | Brass |
| 4 | Stem | SS420 |
| 5 | Bonnet | Ductile Iron |
| 6 | Bolt | Carbon steel |
| 7 | O-ring | NBR |
| 8 | Gland | Ductile Iron |
| 9 | Bolt | Carbon steel |
| 10 | Cap Top | Ductile iron |
| 11 | Outlet | Stainless Steel |
| 12 | Cap | Plastic |

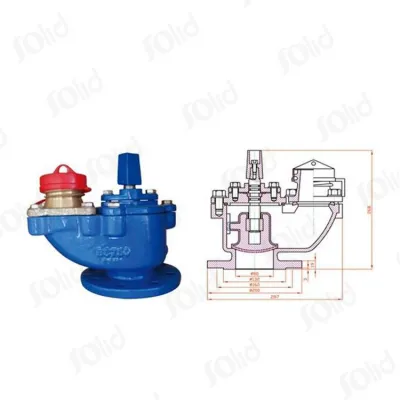

Main Dimensions:
DN | D | H |
80 | 200 | 278 |
