Understanding the Importance of Check Valves in Piping Systems

Check valves, also known as one-way or non-return valves, are mechanical devices that allow fluid to flow in one direction only. They play a vital role in preventing backflow in piping systems, protecting equipment, and ensuring smooth and safe operation across a range of industrial and municipal applications.

How Do Check Valves Work?

Check valves operate automatically and require no manual or external control. When the pressure on the inlet side exceeds the pressure on the outlet side, the valve opens to allow flow. If the flow stops or reverses, the valve closes to block backflow. Common mechanisms include discs, balls, pistons, or swing gates, often assisted by springs or gravity.

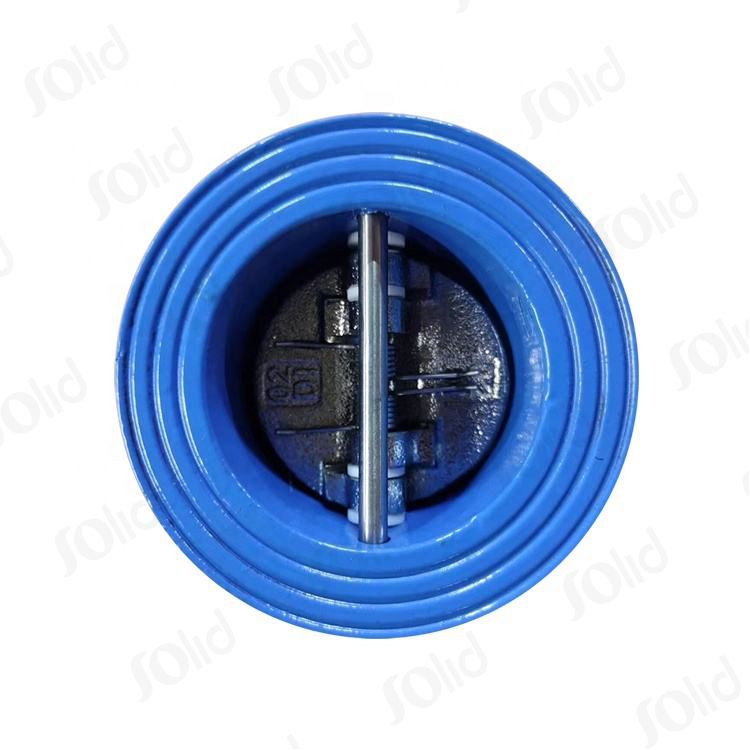

Ductile Iron Dual Plate Wafer Type Check Valve

Key Functions of Check Valves

• Prevent Backflow: Protects pumps, compressors, and other sensitive equipment from reverse flow damage.

• Maintain System Pressure: Helps retain pressure and fluid within sections of a system when pumps shut off.

• Prevent Contamination: Stops cross-contamination between fluids in critical systems, such as drinking water and wastewater lines.

• Reduce Water Hammer: When designed with dampening features, check valves can minimize hydraulic shock caused by sudden flow changes.

• Support System Safety: Acts as a simple, passive safety mechanism in pressurized or vacuum systems.

Types of Check Valves

• Swing Check Valves: Use a hinged disc that swings open with flow and closes against reverse flow; ideal for horizontal systems.

• Ball Check Valves: A ball blocks the flow path and lifts when pressure builds, suited for viscous fluids or wastewater.

• Lift Check Valves: The disc lifts vertically with flow and settles back with gravity when flow reverses.

• Foot Valves: A special check valve installed at pump inlets, usually with a screen to block debris.

• Silent or Axial Flow Valves: Spring-assisted, fast-closing designs that prevent water hammer and ensure smooth shutoff.

Selection Considerations

• Flow Direction & Orientation: Ensure the valve matches the installation direction—some are horizontal-only or vertical-only.

• Material Compatibility: Choose valve materials (e.g., stainless steel, PVC, brass) that resist the chemicals or fluids being conveyed.

• Operating Pressure and Temperature: Match valve ratings to system operating conditions.

• Cracking Pressure: The minimum pressure required to open the valve; must suit your system’s flow characteristics.

• Maintenance and Accessibility: Consider ease of inspection and cleaning, especially in wastewater or contaminated systems.

Conclusion

Check valves are small but critical components in piping systems. Their ability to control flow direction, prevent system failures, and maintain safe operation makes them indispensable in water distribution, chemical processing, HVAC systems, and more. Understanding their function, types, and application considerations helps ensure optimal system performance and long-term reliability.
